Same model may have multiple batches, images only for reference.

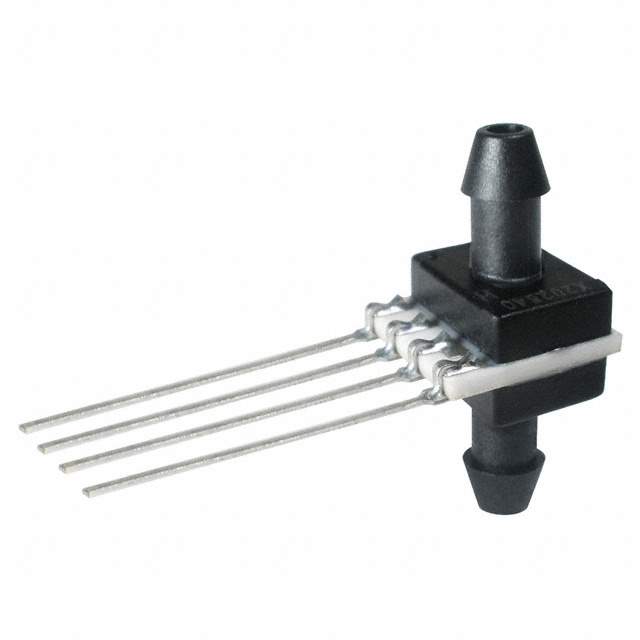

SSCSAAN030ND2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCSAAN030ND2A3

Part No SSCSAAN030ND2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor ±1.08PSI (±7.48kPa) Differential Male - 0.19" (4.93mm) Tube, Dual 12 b 4-SIP, Dual Ports, Opposite Sides
Datasheet
SSCSAAN030ND2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±1.08PSI (±7.48kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±12.65PSI (±87.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Dual Ports, Opposite Sides
Supplier Device Package 4-SIP
Base Product Number SSCSAAN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234625-SSCSAAN030ND2A3
Ultra Librarian 3D Model Ultra Librarian SSCSAAN030ND2A3 CAD Model

Description

The SSCSAAN030ND2A3 is a pressure sensor manufactured by Honeywell Sensing and Productivity Solutions.

  • Series: TruStability® SSC
  • Termination Style: PC pin
  • Amplified Output: Yes
  • Temperature Compensated: Yes
  • Package: bulk
  • Standard Packages: 20
  • Output Type: I2C with 12 b output
  • Accuracy: ±0.25%
  • Pressure Type: differential
  • Operating Pressure: ±1.08PSI (±7.48kPa)
  • Port Size: male - 0.19" (4.93mm) tube, dual
  • Port Style: barbed
  • Maximum Pressure: ±12.65PSI (±87.21kPa)
  • Voltage Supply: 3V ~ 3.6V
  • Package/Case: 4-SIP, dual ports, opposite sides
  • Supplier Device Package: 4-SIP
  • Temperature Range for Operating: -40°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 9026.20.4000
