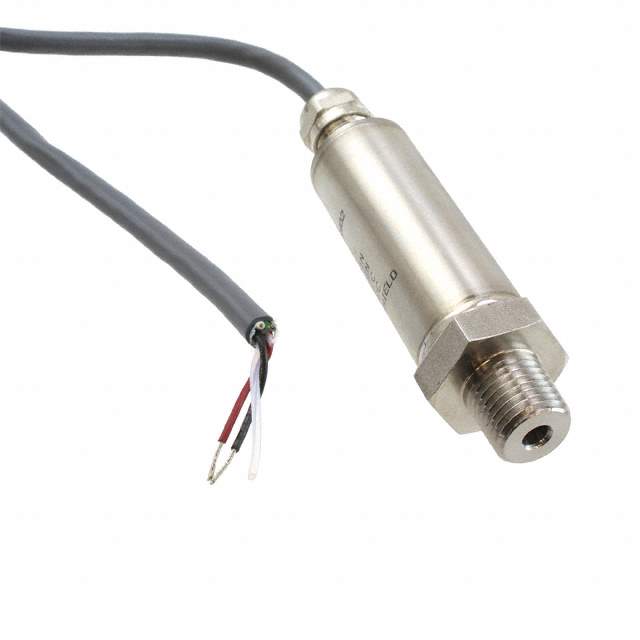

Same model may have multiple batches, images only for reference.

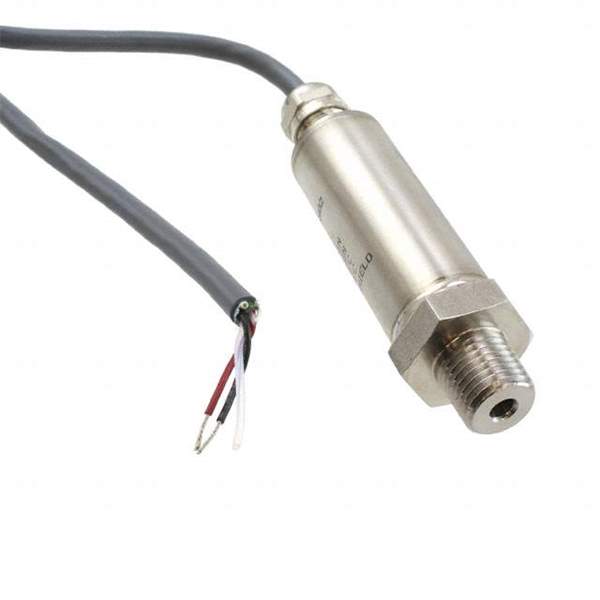

SPTMA0300PG5W02 Real Image
Same model may have multiple batches, images only for reference.

SPTMA0300PG5W02

Part No SPTMA0300PG5W02
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 300PSIG STEEL 4-20MA OUT
Datasheet
SPTMA0300PG5W02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SPT
Applications Industrial Automation
Pressure Type Vented Gauge
Operating Pressure 300PSI (2068.43kPa)
Output Type Wheatstone Bridge
Output 4 mA ~ 20 mA
Accuracy ±0.25%
Voltage - Supply 12.5V ~ 24V
Port Size Male - 1/4" (6.35mm) NPT
Port Style Threaded
Features Temperature Compensated
Termination Style Cable 2'
Maximum Pressure 900PSI (6205.28kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Cylinder
Base Product Number SPTMA0300
Other Names 287-1100R,287-1100
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234859-SPTMA0300PG5W02
Ultra Librarian 3D Model Ultra Librarian SPTMA0300PG5W02 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SPTMA0300PG5W02 is a pressure sensor that is designed to be used in various industrial automation applications.

  • Temperature Compensated: Yes
  • Pressure Type: vented gauge
  • Port Size: male 1/4 inch (6.35mm) NPT
  • Operating Pressure: 300PSI (2068.43kPa)
  • Output: 4 mA to 20 mA
  • Accuracy: ±0.25 percent
  • Series: SPT
  • Standard Package: 25 units
