Same model may have multiple batches, images only for reference.

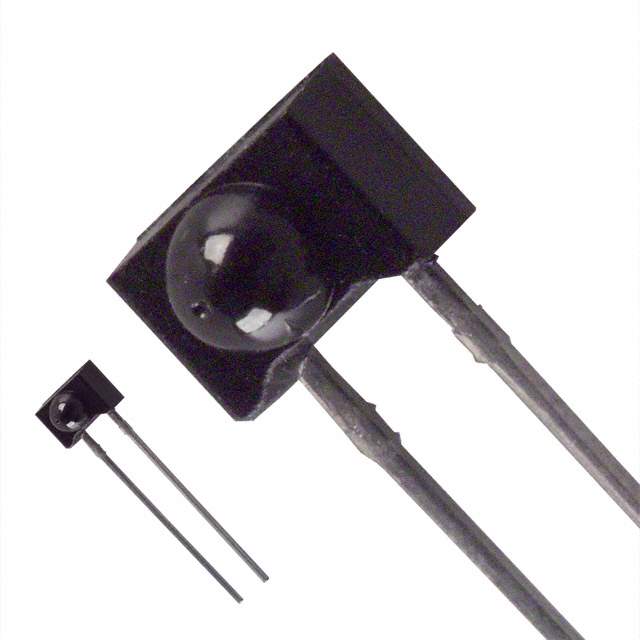

SDP8436-001 Real Image
Same model may have multiple batches, images only for reference.

SDP8436-001

Part No SDP8436-001
Manufacturer Honeywell
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 900NM SIDE VIEW RAD / Phototransistors 900nm Side View Radial
Datasheet
SDP8436-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Dark (Id) (Max) 100 nA
Wavelength 900nm
Viewing Angle 18°
Power - Max 100 mW
Mounting Type Through Hole, Right Angle
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Radial
Other Names 2266-SDP8436-001
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234914-SDP8436-001
Ultra Librarian 3D Model Ultra Librarian SDP8436-001 CAD Model

Description

The Honeywell Phototransistor 1234914-SDP8436-001 is a high-quality sensor that is ideal for use in various electronic applications.

  • Maximum Power Rating: 100 mW
  • Collector-Emitter Breakdown Voltage: 30 V
  • Viewing Angle: 18 degrees
  • Wavelength: 900nm
  • Maximum Dark Current: 100 nA
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through-hole, right-angle mounting
  • Package/Case: Radial
  • Status: Obsolete
