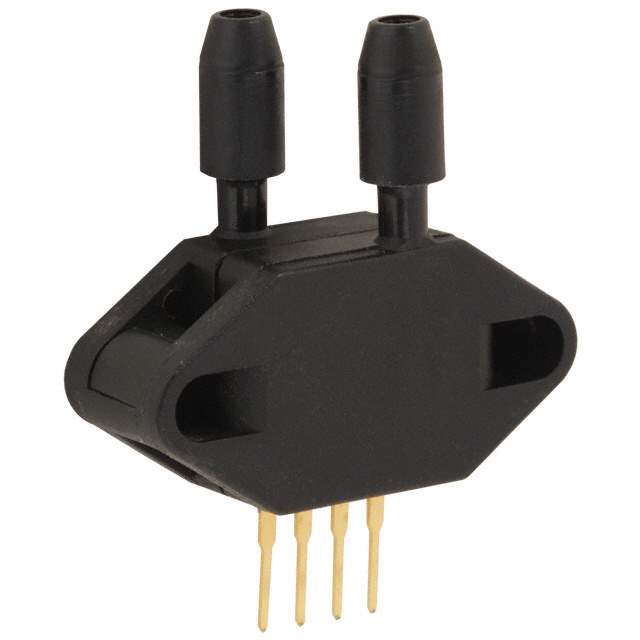

SCC05DN Real Image
Same model may have multiple batches, images only for reference.

SCC05DN

Part No SCC05DN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 5PSI / Pressure Sensor 5PSI (34.47kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 25 mV ~ 65 mV 4-SIP Module
Datasheet
SCC05DN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCC
Package Tray
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 5PSI (34.47kPa)
Output Type Wheatstone Bridge
Output 25 mV ~ 65 mV
Accuracy ±0.5%
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Other Names 480-2858
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234803-SCC05DN
Ultra Librarian 3D Model Ultra Librarian SCC05DN CAD Model

Description

The Honeywell Sensing and Productivity Solutions SCC05DN is a differential pressure sensor with a male - 0.19" (4.8mm) tube dual port style.

  • Port Style: male - 0.19" (4.8mm) tube dual
  • Output: 25 mV ~ 65 mV
  • Accuracy: ±0.5%
  • Operating Pressure: 5PSI (34.47kPa)
  • Maximum Pressure: 20PSI (137.9kPa)
  • Temperature Compensated: Yes
  • Operating Temperature: -40°C to 85°C
