Same model may have multiple batches, images only for reference.

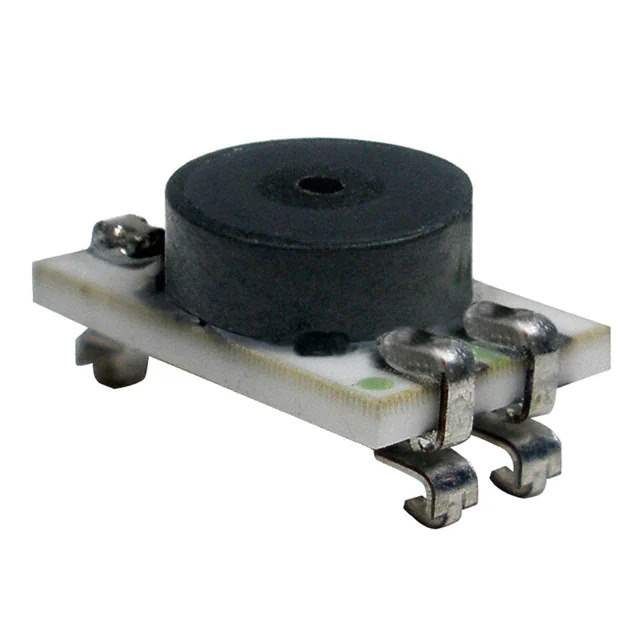

NBPMPNN015PAUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMPNN015PAUNV

Part No NBPMPNN015PAUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIA .075V / Pressure Sensor 15PSI (103.42kPa) Absolute 0 mV ~ 75 mV (5V) 4-SMD, J-Lead, Top Port
Datasheet
NBPMPNN015PAUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series NBP
Package Bulk
Product Status Discontinued
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Voltage - Supply 1.8V ~ 12V
Port Style No Port
Termination Style J Lead
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 4-SMD, J-Lead, Top Port
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 886823-NBPMPNN015PAUNV
Ultra Librarian 3D Model Ultra Librarian NBPMPNN015PAUNV CAD Model

Description

The 886823-NBPMPNN015PAUNV is a pressure sensor designed for board mount applications from Honeywell.

  • Series: NBP
  • Termination Style: J Lead
  • Output Type: Wheatstone Bridge
  • Output Voltage: 0mV to 75mV @ 5V
  • Accuracy: ±0.25%
  • Operating Pressure: 15PSI
  • Maximum Pressure: 30PSI
  • Voltage Supply: 1.8V to 12V
  • Mounting Type: Surface Mount
  • Package: 4-SMD, J-Lead, Top Port
  • Status: Discontinued
