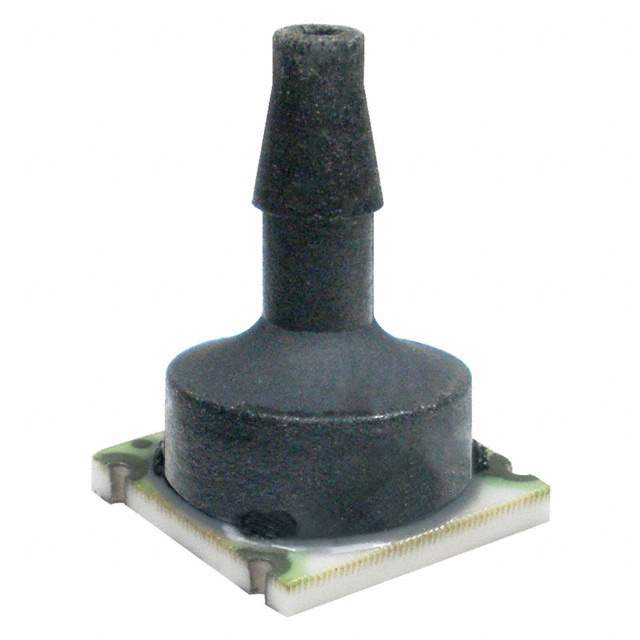

NBPLANN100MGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPLANN100MGUNV

Part No NBPLANN100MGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS
Datasheet
NBPLANN100MGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 1.45 PSI (10 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 47 mV (5)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.75" (1.91mm) Tube
Port Style Barbed
Termination Style Surface Mount
Maximum Pressure 12.33 PSI (85 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 6-SMD, No Lead, Top Port
Win Source Part Number 790540-NBPLANN100MGUNV
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NBPLANN100MGUNV CAD Model

Description

The Honeywell NBP Vented Gauge Pressure Sensor is a surface mount device with a male 0.75” tube port.

  • Voltage Range: 1.8V to 12V
  • Output: 0mV to 47mV
  • Accuracy: ±0.25%
  • Operating Pressure: 1.45 PSI
  • Package: 6-SMD, no lead, top port
  • Temperature Range: -40°C to 125°C
