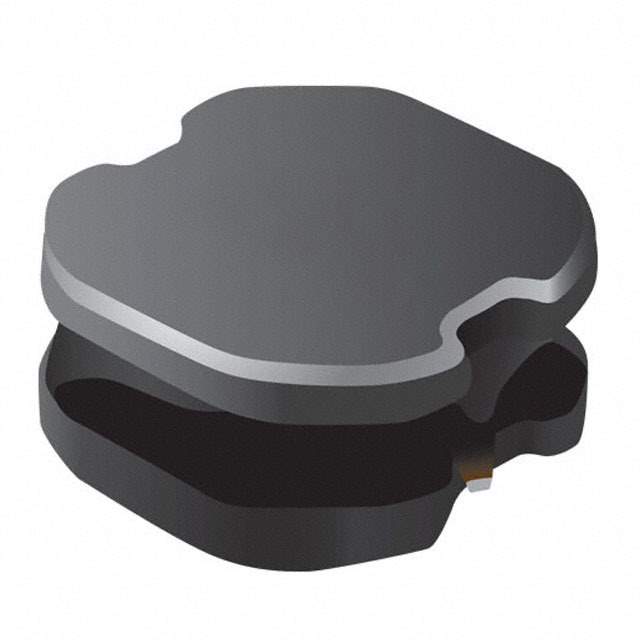

Same model may have multiple batches, images only for reference.

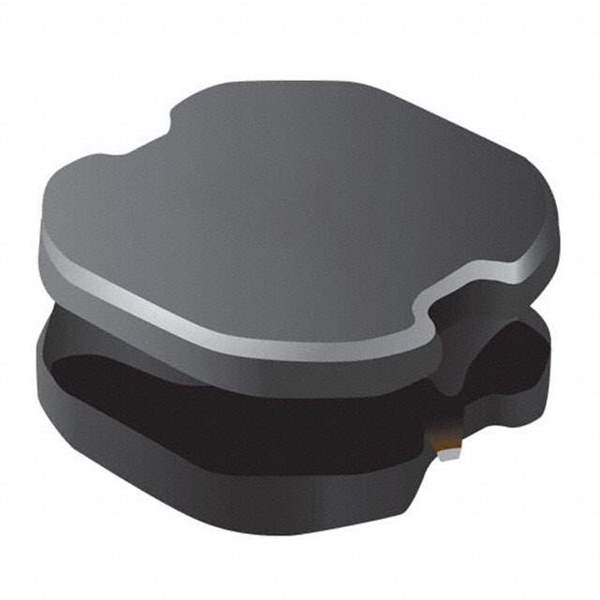

SRN8040-4R7Y Real Image
Same model may have multiple batches, images only for reference.

SRN8040-4R7Y

Part No SRN8040-4R7Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4.1A 24 MOHM SMD / 4.7 µH Semi-Shielded Drum Core, Wirewound Inductor 4.1 A 24mOhm Max Nonstandard
Datasheet
SRN8040-4R7Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN8040
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±30%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 4.7A
Shielding Semi-Shielded
DC Resistance (DCR) 24mOhm Max
Q @ Freq 13 @ 7.96MHz
Frequency - Self Resonant 28MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRN8040
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRN8040-4R7YCT,SRN8040-4R7YTR,SRN80404R7Y,SRN8040-4R7YDKR
Standard Package 1,000
Win Source Part Number 1123752-SRN8040-4R7Y
Ultra Librarian 3D Model Ultra Librarian SRN8040-4R7Y CAD Model

Description

The Bourns Inc. SRN8040-4R7Y is a wirewound, semi-shielded, surface mount fixed inductor with an inductance of 4.7 µH and a tolerance of ±30%.

  • DC Resistance (DCR): 24mOhm Max
  • Current Rating: 4.1 A
  • Q @ Freq: 13 @ 7.96MHz
  • Frequency Self-Resonant: 28MHz
  • Dimensions: 0.315" L x 0.315" W (8.00mm x 8.00mm) with a height of 0.157" (4.00mm)
  • Package: Tape & reel
  • Standard Package: 1,000
  • Temperature Range: -40°C ~ 125°C
