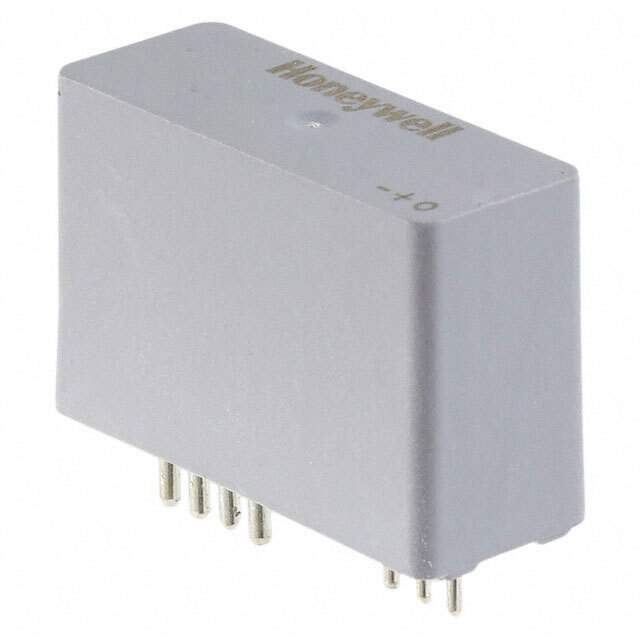

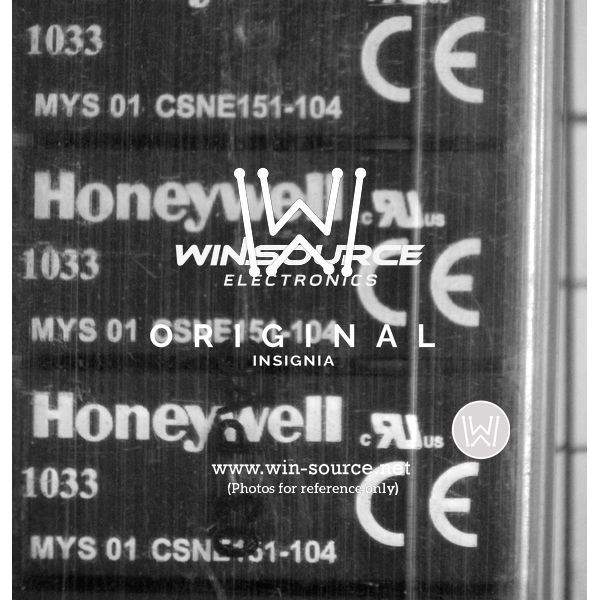

CSNE151-104

Part No CSNE151-104
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 56A AC/DC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 56A
Number of Channels 1
Output Ratiometric, Current
Frequency DC to 150kHz
Linearity ±0.2%
Accuracy ±0.5%
Supply Voltage - Operating ±15V
Response Time 1μs
Current - Supply (Max) 10mA
Temperature Range - Operating 0°C to 70°C
Polarization Bidirectional
Mounting Through Hole
Dimension Module, Single Pass Through
Win Source Part Number 202954-CSNE151-104
Popularity Medium
Supply and Demand Status Limited
Quantity per package 40
Ultra Librarian 3D Model Ultra Librarian CSNE151-104 CAD Model

Description

Description

The CSNE151-104 is a versatile electronic sensor designed to meet the demands of various industrial applications. With its robust design, this sensor ensures accuracy and reliability in diverse environments. It is ideal for projects requiring precise measurements and stability.

Features and Benefits

  • High precision sensing capabilities ensuring accurate readings.
  • Durable construction suitable for harsh environments.
  • Easy to integrate into existing systems.
  • Energy-efficient operation.

Applications

  • Industrial automation systems
  • Environmental monitoring
  • Consumer electronics
  • Automotive applications

Additional Details

The CSNE151-104 sensor is designed to provide long-term stability and to minimize signal drift over time, making it a reliable choice for continuous operation.
