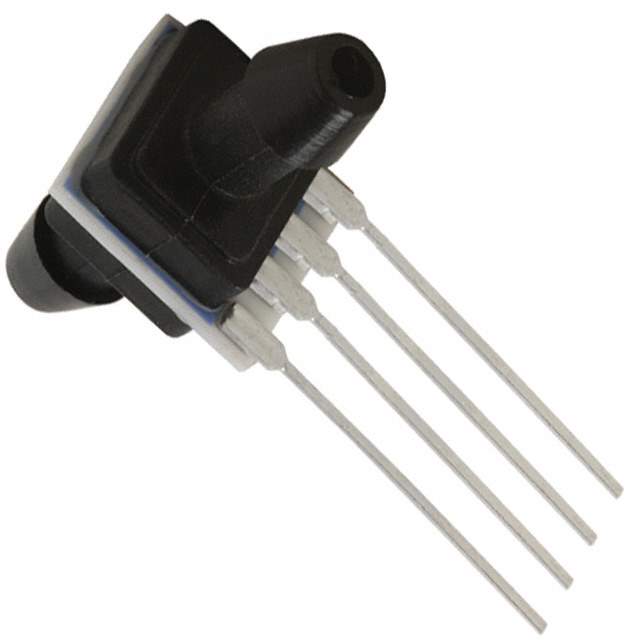

CPC01DFC Real Image
Same model may have multiple batches, images only for reference.

CPC01DFC

Part No CPC01DFC
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR DIFF VACUUM GAUGE 1PSI / Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.16" (4.06mm) Tube, Dual 0 mV ~ 18 mV (12V) 4-SIP Module
Datasheet
CPC01DFC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series CPC
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 18 mV (12V)
Accuracy ±2%
Voltage - Supply 3V ~ 16V
Port Size Male - 0.16" (4.06mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 5PSI (34.47kPa)
Temperature Range - Operating -25°C ~ 85°C
Package / Case 4-SIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-2645-5
Standard Package 5
Win Source Part Number 1029885-CPC01DFC
Ultra Librarian 3D Model Ultra Librarian CPC01DFC CAD Model

Description

The CPC01DFC is a differential pressure sensor designed for use in a wide range of applications.

  • Output: temperature-compensated output
  • Pressure Range: 1 PSI (6.89 kPa) to 5 PSI (34.47 kPa)
  • Port: male 0.16-inch (4.06 mm) tube with dual barbed ports
  • Output Type: Wheatstone bridge output
  • Accuracy: ±2%
  • Voltage Supply: 3V to 16V
  • Package: 4-SIP module
  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Status: obsolete
