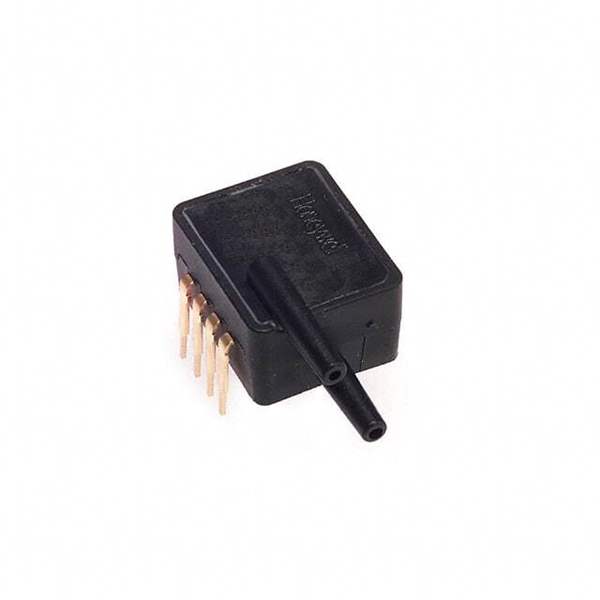

ASDX030D44R
Same model may have multiple batches, images only for reference.

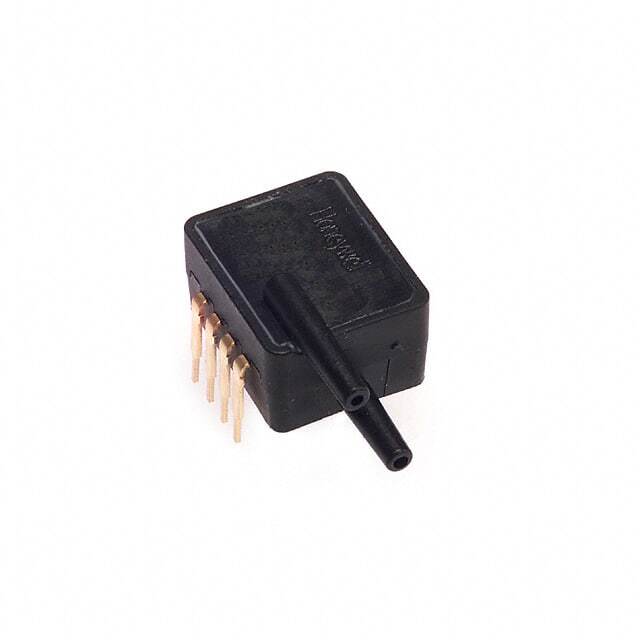

ASDX030D44R

Part No ASDX030D44R
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSID 0.09" 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series ASDX
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 30PSI (206.84kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±2%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.09" (2.29mm) Tube, Dual
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -20°C ~ 105°C
Mounting Type Through Hole
Package / Case 8-DIP Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 846983-ASDX030D44R
Ultra Librarian 3D Model Ultra Librarian ASDX030D44R CAD Model

Description

The Honeywell ASDX series pressure sensor is a highly accurate and temperature-compensated sensor designed for board mount applications from Honeywell.

  • Termination Style: PC Pin
  • Output Type: Amplified
  • Output Voltage Range: 0.5V to 4.5V
  • Supply Voltage Range: 4.75V to 5.25V
  • Accuracy: ±2%
  • Pressure Range: 30PSI
  • Package: 8-DIP Module
  • Temperature Range: -20°C to 105°C
  • Product Status: Obsolete
  • Standard Package: 1 pc
