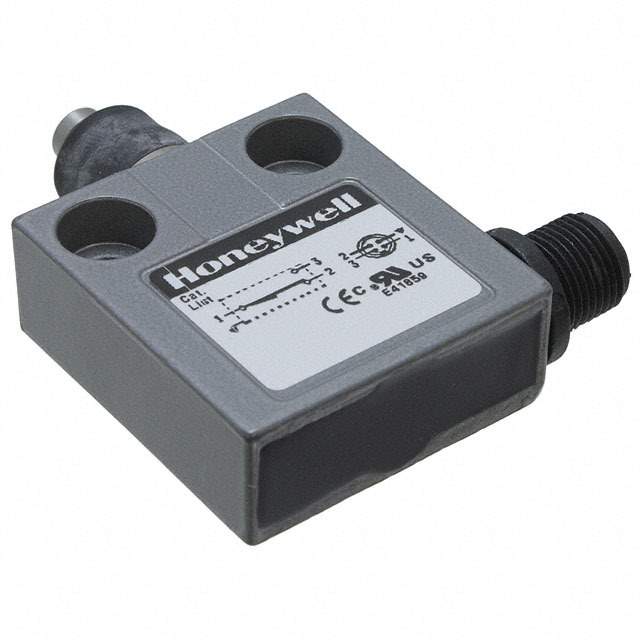

914CE18-AQ Real Image
Same model may have multiple batches, images only for reference.

914CE18-AQ

Part No 914CE18-AQ
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Datasheet
914CE18-AQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series 914CE
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Connector
Ingress Protection IP66 - Dust Tight, Water Resistant
Operating Force 2300gf
Release Force 450gf
Pretravel 0.071" (1.8mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.118" (3.0mm)
Temperature Range - Operating 0°C ~ 105°C
Operating Position 0.980" (24.9mm)
Mechanical Life 10,000,000 Cycles
Base Product Number 914CE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 480-4345,914CE18AQ,914CE18-AQ-ND,2266-914CE18-AQ
Standard Package 1
Win Source Part Number 1226043-914CE18-AQ
Ultra Librarian 3D Model Ultra Librarian 914CE18-AQ CAD Model

Description

The 914CE18-AQ limit switch from Honeywell Sensing and Productivity Solutions is designed for use in a variety of applications.

  • Circuit: SPDT
  • Actuator Type: Round (Pin Plunger)
  • Operating Force: 2300gf
  • Release Force: 450gf
  • Pretravel: 0.071" (1.8mm)
  • Overtravel: 0.118" (3.0mm)
  • Differential Travel: 0.004" (0.1mm)
  • Operating Position: 0.980" (24.9mm)
  • Voltage Rating: 125V AC
  • Current Rating: 3A (AC)
  • Temperature Range: 0°C to 105°C
  • Ingress Protection: IP66
