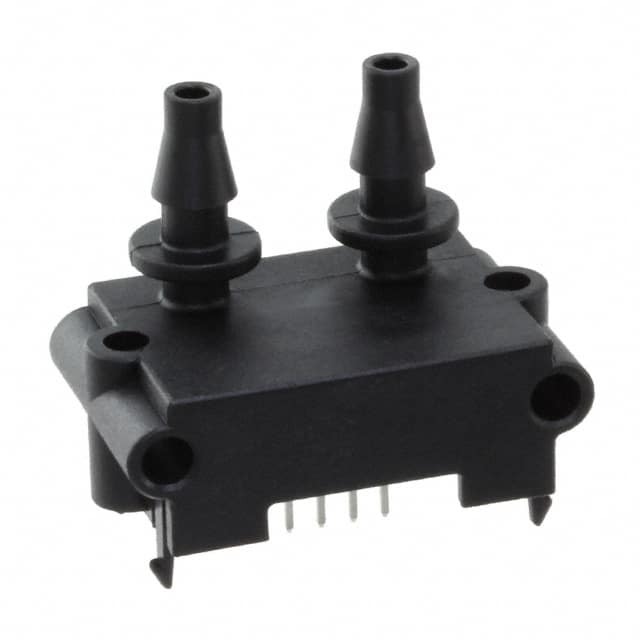

SDP810-125PA Sensirion AG
Same model may have multiple batches, images only for reference.

SDP810-125PA

Part No SDP810-125PA
Manufacturer Sensirion AG
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE DIFF / Pressure Sensor ±0.018PSI (± 0.125kPa) Differential Male - 0.2" (5.2mm) Tube, Dual 16 b Module
Datasheet
SDP810-125PA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Sensirion AG
Series SDP800
Package Tray
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.018PSI (± 0.125kPa)
Output Type I2C
Output 16 b
Accuracy ±3%
Voltage - Supply 3V ~ 5.5V
Port Size Male - 0.2" (5.2mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Maximum Pressure 14.5PSI (100kPa)
Temperature Range - Operating -20°C ~ 85°C
Package / Case Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 1649-1073,1-101597-01
Standard Package 80
Win Source Part Number 1219000-SDP810-125PA
Ultra Librarian 3D Model Ultra Librarian SDP810-125PA CAD Model

Description

The SDP800 series differential pressure sensor is a temperature-compensated sensor that can be used in board mount applications.

  • Output Type: I2C output type and 16-bit output
  • Accuracy: ±3%
  • Pressure Range: ±0.018PSI (± 0.125kPa)
  • Maximum Pressure: 14.5PSI (100kPa)
  • Voltage Supply: Between 3V ~ 5.5V
  • Operating Temperature Range: -20°C ~ 85°C
  • Package: Module with a male 0.2" (5.2mm) tube dual barbed port style
  • Alternative: This product is an alternative to SDP810-125PA.
