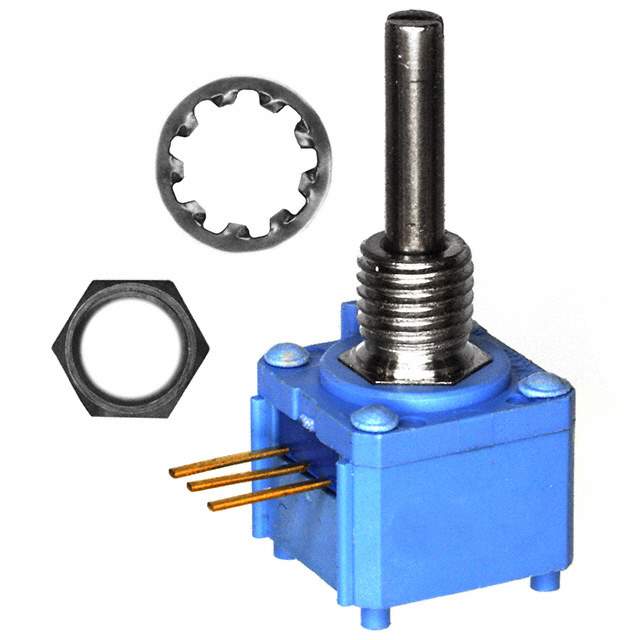

309NPC5MEG Real Image
Same model may have multiple batches, images only for reference.

309NPC5MEG

Part No 309NPC5MEG
Manufacturer Honeywell
Catalog Rotary Potentiometers, Rheostats
Description POT 5M OHM 1W CERMET LINEAR / Res Cermet POT 5M Ohm 20% 1W 1(Elec)/1(Mech)Turn 3.18mm (46.74 X 12.7 X 13.34mm) Pin Panel Mount/Through Hole
Datasheet
309NPC5MEG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Honeywell Sensing and Productivity Solutions
Series 309NPC
Packaging Bulk
Part Status Obsolete(EOL)
Taper Linear
Resistance (Ohms) 5M
Tolerance ±20%
Number of Gangs 1
Built in Switch None
Power (Watts) 1W
Number of Turns 1
Rotation 295°
Adjustment Type Side Adjustment
Resistive Material Cermet
Termination Style PC Pins
Actuator Type Slotted
Actuator Length 0.750" (19.05mm)
Actuator Diameter 0.125" (3.18mm)
Bushing Thread 1/4-32
Mounting Panel Mount
Win Source Part Number 791432-309NPC5MEG
Popularity Medium
Supply and Demand Status Limited
Family Name 309
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 309NPC5MEG CAD Model

Description

The Honeywell 309NPC potentiometer is an obsolete solution for your variable resistor needs. This potentiometer has a resistive material of cermet and a linear taper with one gang.

  • Resistive Material: cermet
  • Taper: linear
  • Gangs: one
  • Actuator Type: slotted
  • Actuator Length: 0.750" (19.05mm)
  • Bushing Thread: 1/4-32
  • Adjustment: side
  • Resistance: 5M ohms
  • Rotation: 295°
  • Actuator Diameter: 0.125" (3.18mm)
  • ECCN: EAR99
