Same model may have multiple batches, images only for reference.

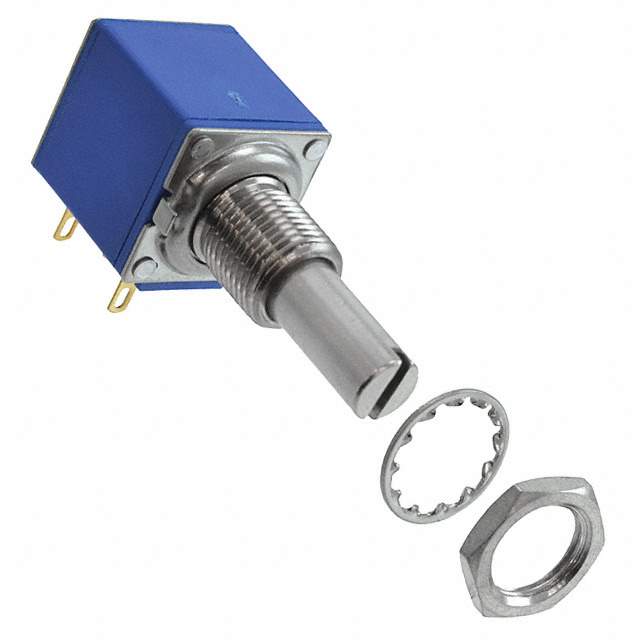

84A1D-B24-J15L Real Image
Same model may have multiple batches, images only for reference.

84A1D-B24-J15L

Part No 84A1D-B24-J15L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 1W WIREWOUND LINEAR
Datasheet
84A1D-B24-J15L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series 84
Packaging Bulk
Taper Linear
Resistance (Ohms) 10k
Tolerance ±5%
Number of Gangs 1
Built in Switch None
Power (Watts) 1W
Temperature Coefficient ±50ppm/°C
Number of Turns 10
Rotation 3600°
Adjustment Type User Defined
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.750" (19.05mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Panel Mount
Win Source Part Number 766332-84A1D-B24-J15L
Popularity Medium
Supply and Demand Status Limited
Family Name 84
Introduction Date April 15, 2003
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 84A1D-B24-J15L CAD Model

Description

The Bourns Inc. 766332-84A1D-B24-J15L is an 84 series potentiometer from Bourns Inc.

  • Power: 1W
  • Resistance: 10k ohms
  • Mounting Type: Panel Mount
  • Termination Style: Solder Lug
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Actuator Type: Slotted
  • Actuator Length: 0.750" (19.05mm)
  • Bushing Thread: 3/8-32
  • Number of Turns: 10
  • Adjustment Type: User Defined
  • Resistive Material: Wirewound
  • Taper: Linear
  • Number of Gangs: 1
  • Switch: No
  • Rotation: 3600°
  • Actuator Diameter: 0.250" (6.35mm)
