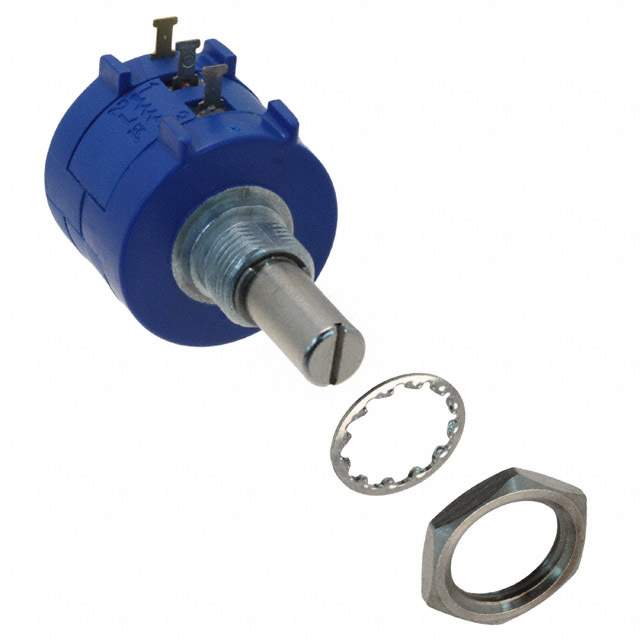

Same model may have multiple batches, images only for reference.

3590S-2-502L

Name: 3590S-2-502L
Brand: Bourns Inc.
SKU: 419540
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3590S-2-502L
Manufacturer	Bourns Inc.
Catalog	Rotary Potentiometers, Rheostats
Description	POT 5K OHM 2W WIREWOUND LINEAR
Datasheet	3590S-2-502L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Potentiometers, Variable Resistors
Manufacturer	Bourns Inc.
Packaging	Bulk
Status	Active
Taper	Linear
Resistance (Ohms)	5k
Tolerance	±5%
Number of Gangs	1
Built in Switch	None
Power (Watts)	2W
Temperature Coefficient	±50ppm/°C
Number of Turns	10
Rotation	3600°
Adjustment Type	User Defined
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.812" (20.63mm)
Actuator Diameter	0.2497" (6.34mm)
Bushing Thread	3/8-32
Mounting	Panel Mount
Win Source Part Number	1005212-3590S-2-502L
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 3590S-2-502L CAD Model

Description

The Bourns Inc. 3590S-2-502L is a user-defined potentiometer with a linear taper and ±5% tolerance.

Turns: 10 turns
Resistance: 5k Ohms
Power Rating: 2W
Temperature Coefficient: ±50ppm/°C
Actuator Type: slotted
Actuator Length: 0.812" (20.63mm)
Bushing Thread: 3/8-32
Mounting: designed for panel mounting
Resistor Type: wirewound resistor
Rotation: 3600°
Package: available in a bulk package
Usage: used in various electronic components
Popularity: medium
Supply and Demand Status: limited
