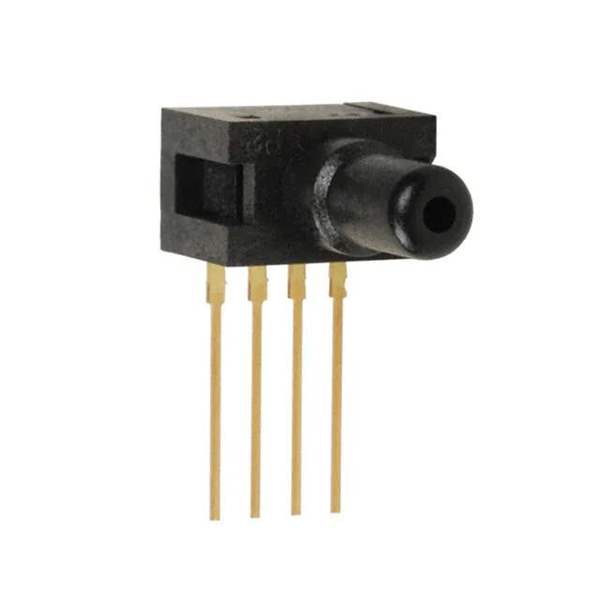

26PCDFA6G Real Image
Same model may have multiple batches, images only for reference.

26PCDFA6G

Part No 26PCDFA6G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSIC 0.2" 0.1V
Datasheet
26PCDFA6G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC
Package Tray
Product Status Active
Applications Board Mount
Pressure Type Compound
Operating Pressure ±30PSI (±206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.2%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.2" (5.08mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±60PSI (±413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number 26PCDFA
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 854851-26PCDFA6G
Ultra Librarian 3D Model Ultra Librarian 26PCDFA6G CAD Model

Description

The Honeywell 26PC is a pressure sensor designed for board mount applications. It is manufactured by Honeywell.

  • Output Type: Temperature Compensated
  • Pressure Type: Compound
  • Operating Pressure Range: ±30PSI
  • Maximum Pressure Range: ±60PSI
  • Accuracy: ±0.2%
  • Output Range: 0mV to 100mV
  • Voltage Supply Range: 2.5V to 16V
  • Temperature Range: -40°C to 85°C
  • Mounting: Through-Hole
  • Package: 4-SIP Module
