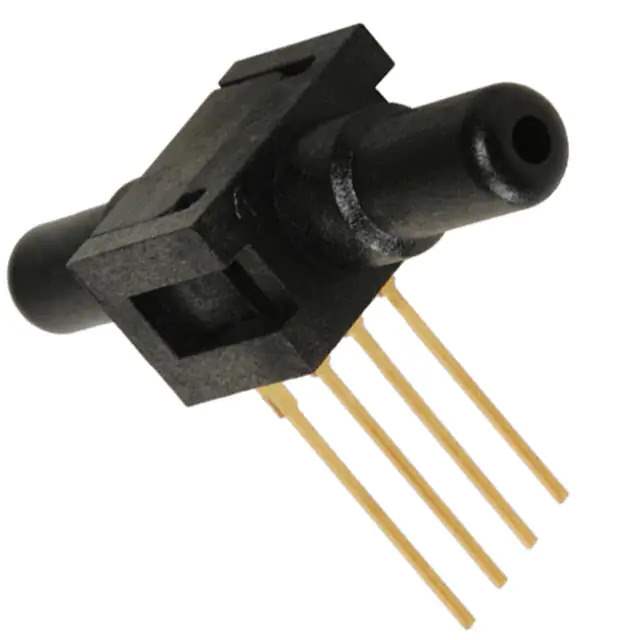

26PCDFA6D Real Image
Same model may have multiple batches, images only for reference.

26PCDFA6D

Part No 26PCDFA6D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSID 0.2" 0.1V / Pressure Sensor ±30PSI (±206.84kPa) Differential Male - 0.2" (5.08mm) Tube, Dual 0 mV ~ 100 mV (10V) 4-SIP Module
Datasheet
26PCDFA6D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series 26PC
Package Tray
Product Status Active
Applications Board Mount
Pressure Type Differential
Operating Pressure ±30PSI (±206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.2%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.2" (5.08mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±60PSI (±413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP Module
Base Product Number 26PCDFA
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 906107-26PCDFA6D
Ultra Librarian 3D Model Ultra Librarian 26PCDFA6D CAD Model

Description

The 906107-26PCDFA6D is a pressure sensor designed and manufactured by Honeywell.

  • Series: 26PC
  • Termination Style: PC pin
  • Feature: Temperature compensated
  • Package: Tray
  • Standard Package: 25 pieces
  • Application: Board mount
  • Output Type: Wheatstone bridge
  • Output Voltage: 0mV to 100mV
  • Supply Voltage: 10V
  • Accuracy: ±0.2%
  • Pressure Range: ±30PSI
  • Port Size: 0.2" (dual)
  • Port Style: Barbless
  • Maximum Pressure: ±60PSI
  • Voltage Supply: 2.5V to 16V
  • Temperature Range: -40°C to 85°C
  • Product Status: Active
