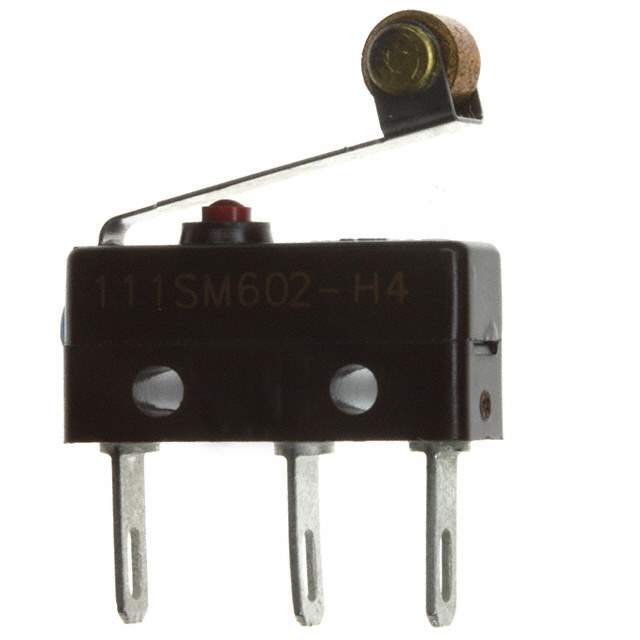

111SM602-H4 Real Image
Same model may have multiple batches, images only for reference.

111SM602-H4

Part No 111SM602-H4
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT Chassis Mount
Datasheet
111SM602-H4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SM
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Operating Force 198gf
Release Force 57gf
Operating Position 0.562" (14.3mm)
Pretravel 0.218" (5.5mm)
Differential Travel 0.025" (0.6mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -55°C ~ 125°C
Mechanical Life 10,000,000 Cycles
Base Product Number 111SM
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1350036-111SM602-H4
Ultra Librarian 3D Model Ultra Librarian 111SM602-H4 CAD Model

Description

The Honeywell SM series limit switch is a chassis mount type switch used in various applications.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating (AC): 250 V
  • Voltage Rating (DC): 30 V
  • Release Force: 57gf
  • Operating Force: 198gf
  • Actuator Type: Lever/Roller
  • Operating Position: 0.562" (14.3mm)
  • Differential Travel: 0.025" (0.6mm)
  • Overtravel: 0.030" (0.76mm)
  • Pretravel: 0.218" (5.5mm)
  • Mechanical Life: 10,000,000 cycles
  • Temperature Range: -55°C to 125°C
