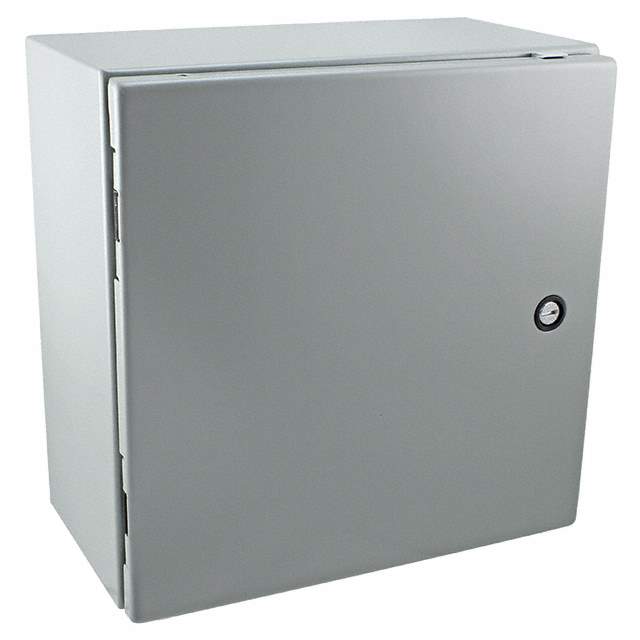

CSD20166 Real Image
Same model may have multiple batches, images only for reference.

CSD20166

Part No CSD20166
Manufacturer Hoffman Enclosures, Inc.
Catalog Boxes
Description BOX STEEL GRAY 20"L X 15.98"W
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Boxes, Enclosures, Racks
Manufacturer Hoffman Enclosures, Inc.
Status Active
Container Type Box
Height 5.984" (152.00mm)
Area (L x W) 320" (2065cm)
Design Hinged Door, Lid
Material Metal, Steel
Color Gray
Thickness 18 Gauge
Features Sealing Gasket, Wall Mount
Ratings IP66, NEMA 4,12,13, UL-508A
Weight 22 lbs (10kg)
Win Source Part Number 1032086-CSD20166
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian CSD20166 CAD Model

Description

The 1032086-CSD20166 enclosure from Hoffman Enclosures, Inc. is a high-quality metal enclosure that is designed to withstand harsh industrial environments.

  • Thickness: 18 gauge
  • Height: 5.984" (152.00mm)
  • Door/Lid: Hinged with sealing gasket
  • Color: Gray
  • NEMA Rating: 4,12,13, UL-508A
  • IP Rating: IP66
  • Shipping From: Digi-Key
  • Weight: 22 lbs (10kg)
  • Container Type: Box
  • Area: 320" (2065cm)
  • Ideal For: Various industrial applications
