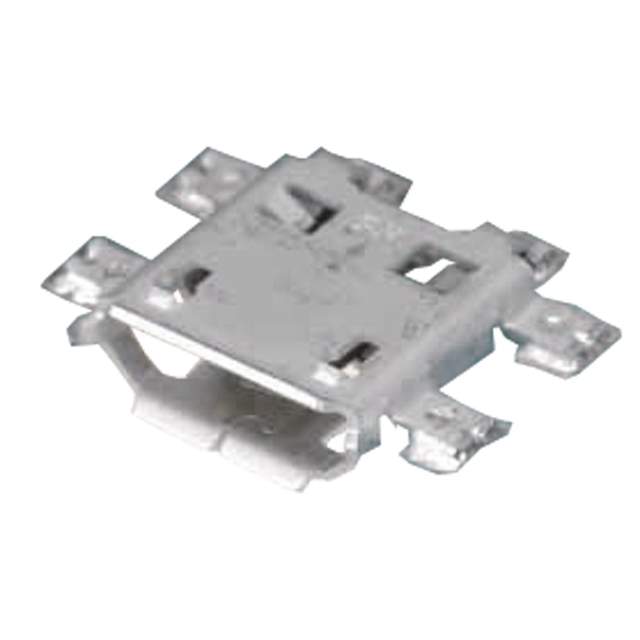

ZX62M-B-5P Real Image
Same model may have multiple batches, images only for reference.

ZX62M-B-5P

Part No ZX62M-B-5P
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features USB - micro B USB 2.0 Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series ZX
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -30°C ~ 85°C
Mounting Board Edge, Cutout; Surface Mount, Right Angle
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number ZX62MB5P, H11493DKR, *ZX62M-B-5P, H11493CT, H11493TR
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904369-ZX62M-B-5P
Ultra Librarian 3D Model Ultra Librarian ZX62M-B-5P CAD Model

Description

The Hirose Electric Co Ltd ZX series connector is a micro B USB 2.0 receptacle connector with 5 positions board edge, cutout and surface mount, right angle.

  • Type: micro B USB 2.0 Receptacle Connector
  • Positions: 5
  • Mounting: Board Edge, Cutout and Surface Mount, Right Angle
  • Package: Reel - TR
  • Status: Obsolete
  • Material: Liquid Crystal Polymer (LCP)
  • Color: Beige
