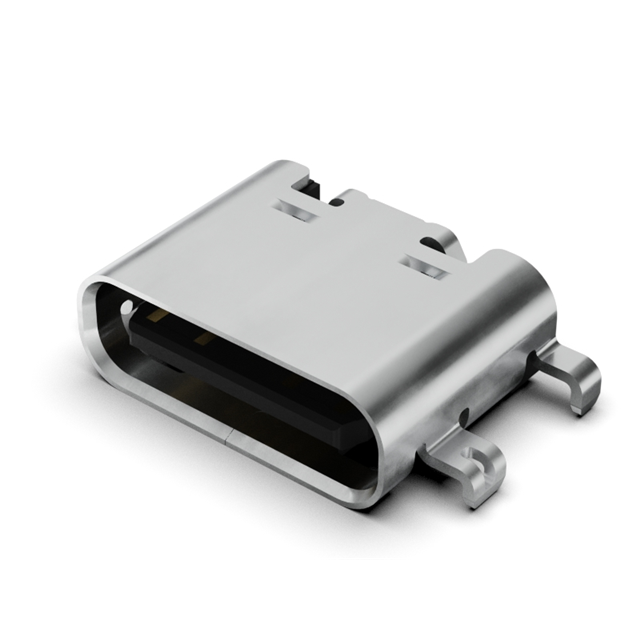

Same model may have multiple batches, images only for reference.

USB4500-03-0-A

Name: USB4500-03-0-A
Brand: GCT
SKU: 1479138
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	USB4500-03-0-A
Manufacturer	GCT
Catalog	USB, DVI, HDMI Connectors
Description	USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	GCT
Series	USB4500
Packaging	Reel - TR
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24 (16+8 Dummy)
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature	Horizontal, Mid Mount
Termination	Solder
Features	Solder Retention Tab
Temperature Range - Operating	-25°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	5A
Voltage - Rated	48VDC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel (SUS304)
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	USB4500
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1479138-USB4500-03-0-A
Ultra Librarian 3D Model	Ultra Librarian USB4500-03-0-A CAD Model
