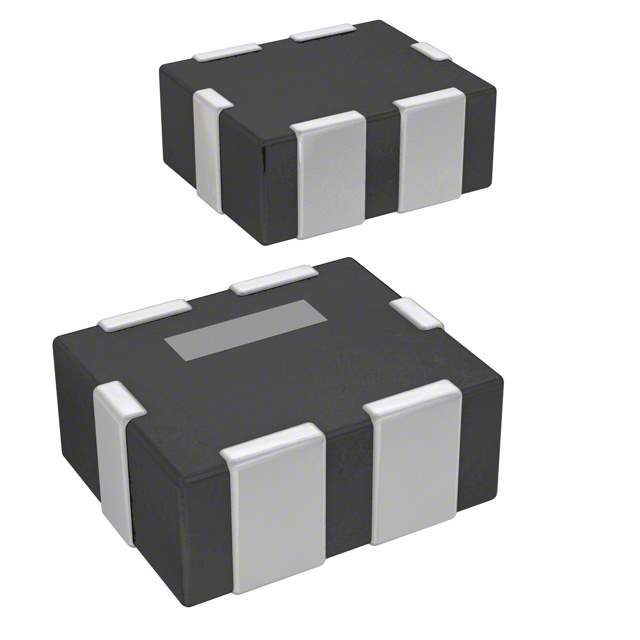

MEA1210PE220T001 Real Image
Same model may have multiple batches, images only for reference.

MEA1210PE220T001

Part No MEA1210PE220T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 22PF 250MHZ SMD
Datasheet
MEA1210PE220T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 2
Center / Cutoff Frequency 250MHz (Cutoff)
Attenuation Value 20dB @ 470MHz to 3GHz
Current 100mA
Values C = 22pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.047" L x 0.039" W (1.20mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 1075763-MEA1210PE220T001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MEA1210PE220T001 CAD Model

Description

The TDK Corporation Low Pass filter is a data line filter designed for mobile devices.

  • Voltage: 6.3V
  • Current: 100mA
  • Filter Order: 3rd
  • Attenuation: 20dB @ 470MHz to 3GHz
  • Technology: LC (Pi)
  • Height: 0.024" (0.60mm)
  • Center/Cutoff Frequency: 250MHz (Cutoff)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • C Value: 22pF
