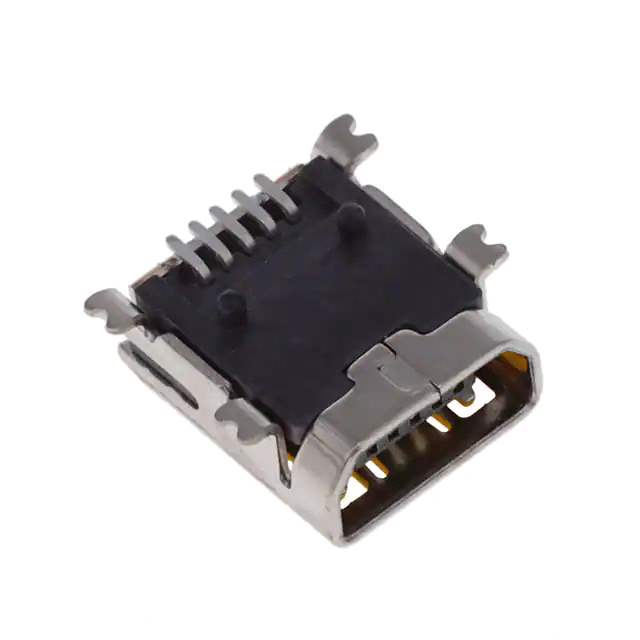

10033527-N3112MLF Real Image
Same model may have multiple batches, images only for reference.

10033527-N3112MLF

Part No 10033527-N3112MLF
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description MINI USB AB TYPE RECEPT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Amphenol
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type USB - mini AB
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30V
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 10033527
Standard Package 750 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 811947-10033527-N3112MLF
Ultra Librarian 3D Model Ultra Librarian 10033527-N3112MLF CAD Model

Description

The Amphenol 811947-10033527-N3112MLF is a USB, DVI, HDMI connector assembly.

  • Connector Type: USB mini AB
  • Termination: Solder
  • Contact Finish: Gold
  • Shielded: Yes
  • Voltage Rating: 30V
  • Mounting: Surface Mount, Right Angle
  • Operating Temperature: -25°C to 85°C
