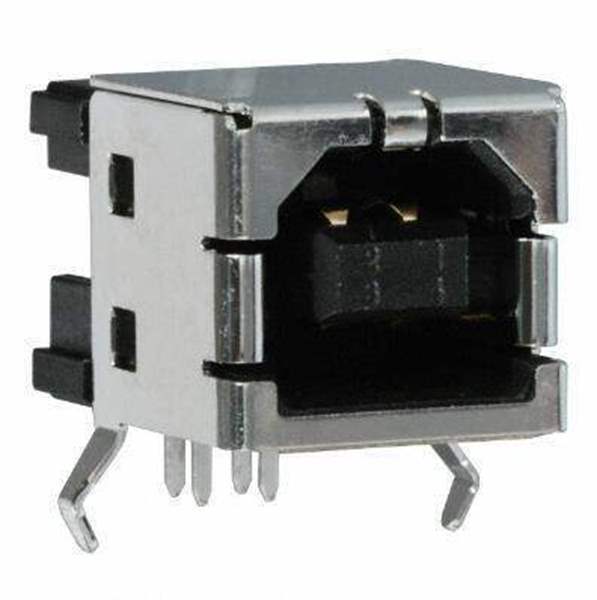

292304-5 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292304-5

Part No 292304-5
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEB 4POS R/A
Datasheet
292304-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Connector Type USB-B (USB TYPE-B)
Gender Receptacle
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Operating Temperature -55°C ~ 85°C
Mating Cycles 1500
Voltage - Rated 30VAC
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Win Source Part Number WS1307063-292304-5
Ultra Librarian 3D Model Ultra Librarian 292304-5 CAD Model

Description

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
