Same model may have multiple batches, images only for reference.

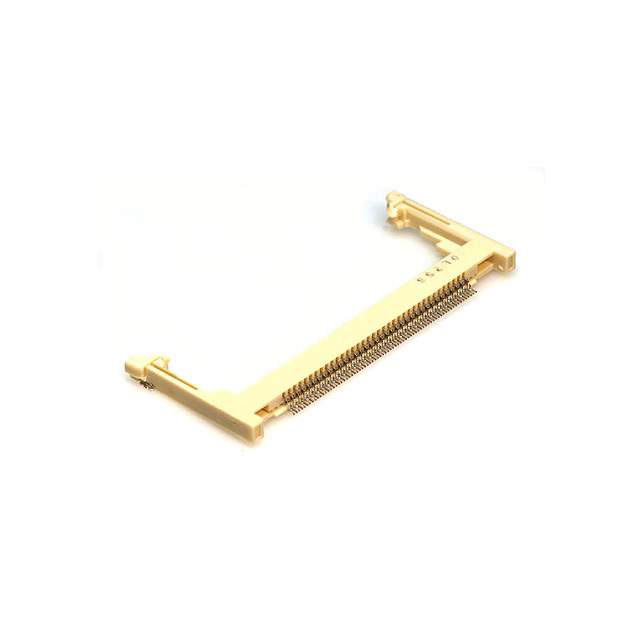

SX1EA-72S-0.635SH Real Image
Same model may have multiple batches, images only for reference.

SX1EA-72S-0.635SH

Part No SX1EA-72S-0.635SH
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - Inline Module Sockets
Datasheet
SX1EA-72S-0.635SH Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - Inline Module Sockets
Mfr Hirose Electric Co Ltd
Series SX1
Package Bulk
Product Status Obsolete
Connector Style SODIMM
Number of Positions 72
Memory Type DRAM
Mounting Type Surface Mount, Right Angle
Features Board Guide, Latches
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Other Names *SX1EA-72S-0.635SH,H2347
Standard Package 40
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294072-SX1EA-72S-0.635SH
Ultra Librarian 3D Model Ultra Librarian SX1EA-72S-0.635SH CAD Model

Description

The Hirose Electric Co Ltd SX1 series is a 72-position, surface mount, right angle connector style SODIMM memory connector.

  • Features: Board Guide and Latches
  • Contact Finish: Gold
  • Packaging: Bulk
  • Standard Package: 40 pieces
  • Application: Memory Connector - Inline Module Sockets
  • Manufacturer: Hirose Electric Co Ltd
  • ECCN: EAR99 Compliant
  • HTSUS: 8536.69.4040
  • Status: Obsolete
  • RoHS: Non-Compliant
