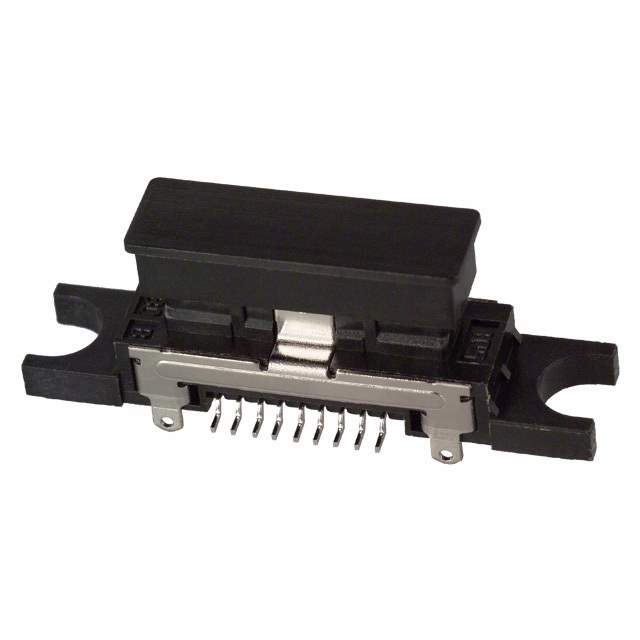

Same model may have multiple batches, images only for reference.

ST80X-18S(30)

Name: ST80X-18S(30)
Brand: Hirose Electric Co Ltd
SKU: 1293314
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ST80X-18S(30)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Datasheet	ST80X-18S(30) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tape & Reel
Connector Type	Plug, Cradle
Contact Type	Non-Gendered
Pitch - Mating	0.039" (1.00mm)
Number of Positions	18
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.378" (9.60mm)
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Mounting Flange, Shielded
Temperature Range - Operating	-30°C ~ 80°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	0.5A
Voltage Rating	100V
Base Product Number	ST80X
Other Names	241-0020-0-30,H125268CT,H125268DKR,H125268TR
Standard Package	400
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293314-ST80X-18S(30)
Ultra Librarian 3D Model	Ultra Librarian ST80X-18S(30) CAD Model

Alternative Products

Description

The Hirose Electric ST80X-18S(30) is a board-to-cable wire connector designed for use in a wide range of applications.

Manufacturer: Hirose Electric
Positions: 18
Features: Board guide, mounting flange, and shielded design
Connector Type: Plug cradle type
Contact Type: Non-gendered
Voltage: 100V
Current Rating: 0.5A
Package: Tape and reel
Installation: Surface-mount
RoHS: Compliant
Temperature Range: -30°C to 80°C
