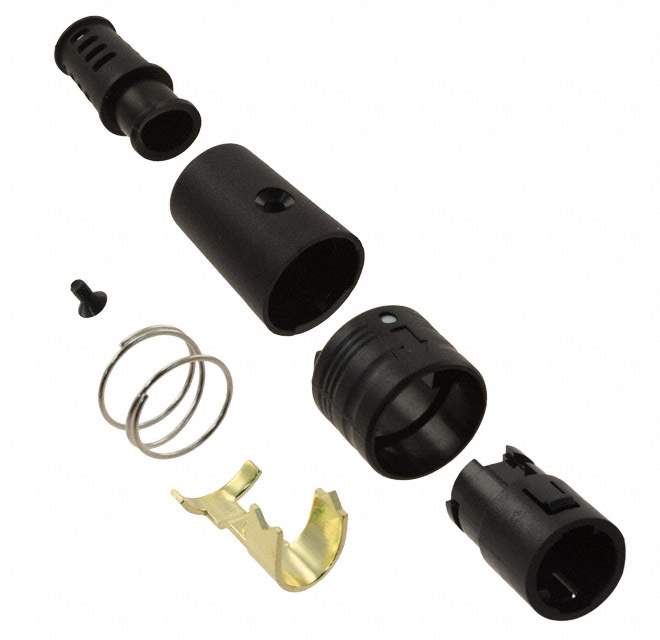

RP17-13P-12PC(71) Real Image
Same model may have multiple batches, images only for reference.

RP17-13P-12PC(71)

Part No RP17-13P-12PC(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Description CONN PLUG HSG MALE 12POS INLINE / 12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Strain Relief
Datasheet
RP17-13P-12PC(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Hirose Electric Co Ltd
Series RP17
Package Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 12
Shell Size - Insert 13
Contact Type Crimp
Contact Size 1.2mm (9), 1.6mm (3)
Mounting Type Free Hanging (In-Line)
Fastening Type Push-Pull
Orientation Keyed
Shell Material Polycarbonate (PC)
Housing Color Black
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Strain Relief
Shielding Unshielded
Note Contacts Not Included
Includes 6 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 Screw, 1 Spring, 1 Strain Relief
Insert Material Polycarbonate (PC)
Contact Shape Circular
Temperature Range - Operating -10°C ~ 60°C
Base Product Number RP17
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names *RP17-13P-12PC(71),HR1269,RP1713P12PC71,113-0501-0-71
Standard Package 200
Win Source Part Number 1084093-RP17-13P-12PC(71)
Ultra Librarian 3D Model Ultra Librarian RP17-13P-12PC(71) CAD Model

Description

The Hirose Electric Co Ltd RP17 series plug housing connector, part number 1084093-RP17-13P-12PC(71), is a push-pull fastening type connector with 12 positions and a shell size of 13.

  • Fastening Type: Push-Pull
  • Positions: 12
  • Shell Size: 13
  • Features: Backshell, Cable Clamp, Strain Relief
  • Contact Type: Crimp
  • Contact Shape: Circular
  • Housing Color: Black
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -10°C to 60°C
  • Contacts Included: No
  • Standard Package: 200
