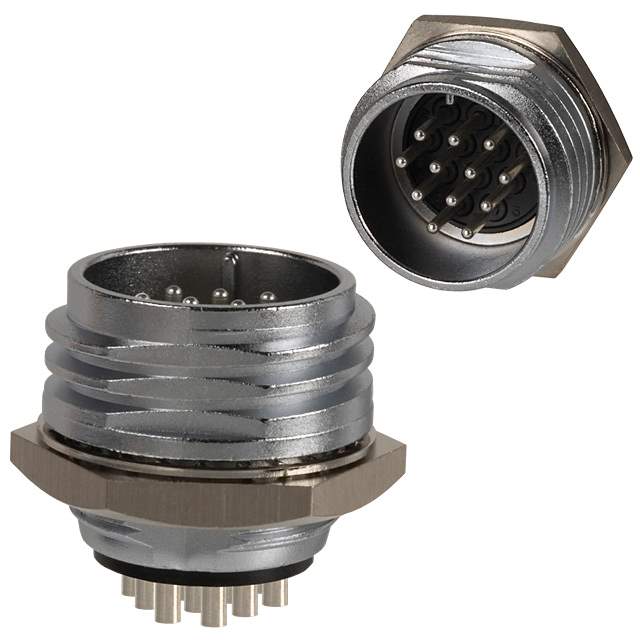

RM15TRD-12P(71) Real Image
Same model may have multiple batches, images only for reference.

RM15TRD-12P(71)

Part No RM15TRD-12P(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Description RECEPTACLE W/PIN INSERT (12 CON)
Datasheet
RM15TRD-12P(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Status Active
Connector Type Receptacle, Male Pins
Number of Positions 12
Shell Size - Insert 15
Mounting Panel Mount, Bulkhead - Rear Side Nut
Termination Solder
Fastening Type Threaded
Orientation Keyed
Shell Material, Finish Brass and Zinc, Nickel Plated
Contact Finish Silver
Voltage Rating 350VAC
Current Rating 5A
Temperature Range - Operating -25°C to 85°C
Win Source Part Number 104224-RM15TRD-12P(71)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian RM15TRD-12P(71) CAD Model

Description

The Hirose Electric Co Ltd 104224-RM15TRD-12P(71) is a 12-position panel mount connector with male pins.

  • Positions: The connector features a threaded fastening type and a keyed orientation.
  • Voltage Rating: It has a voltage rating of 350VAC
  • Current Rating: and a current rating of 5A.
  • Material: The connector is made of brass and zinc and is nickel plated.
  • Package: The package contains 20 connectors.
