Same model may have multiple batches, images only for reference.

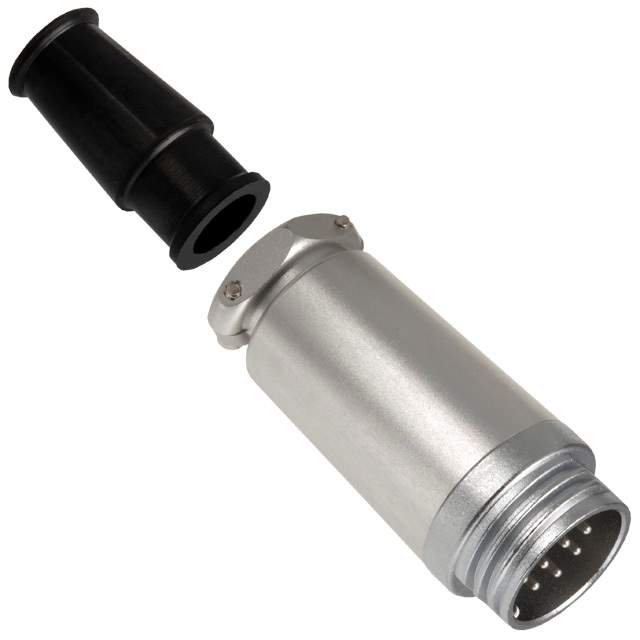

RM15TJD-10P(71) Real Image
Same model may have multiple batches, images only for reference.

RM15TJD-10P(71)

Part No RM15TJD-10P(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN JACK MALE 10P SOLDER CUP / 10 Position Circular Connector Jack, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series RM
Package Bulk
Product Status Obsolete
Connector Type Jack, Male Pins
Number of Positions 10
Shell Size - Insert 15
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Chrome
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Strain Relief
Current Rating (Amps) 5A
Voltage Rating 350VAC, 490VDC
Cable Opening 0.386" (9.80mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Aluminum Alloy, Chrome
Contact Material Brass
Contact Finish Thickness - Mating 157.5µin (4.00µm)
Insert Material Diallyl Phthalate (DAP)
Base Product Number RM15TJD
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1340404-RM15TJD-10P(71)
Ultra Librarian 3D Model Ultra Librarian RM15TJD-10P(71) CAD Model

Description

The Hirose Electric Co Ltd 1340404-RM15TJD-10P(71) is a bulk-packaged electronic component that is part of the RM series.

  • Series: RM
  • Packaging: Bulk
  • Status: Obsolete
  • Standard Package: 20
  • Features: Backshell, Cable Clamp, Strain Relief
  • Gender: Jack, Male Pins
