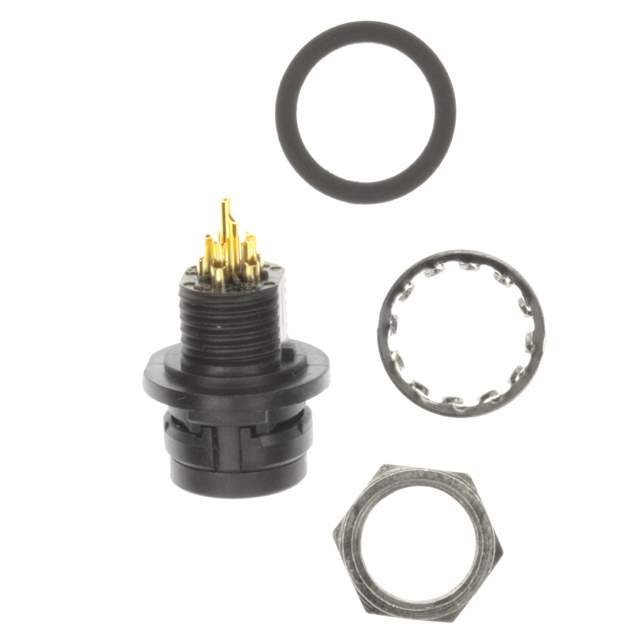

HR30-6R-6S(71) Real Image
Same model may have multiple batches, images only for reference.

HR30-6R-6S(71)

Part No HR30-6R-6S(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 6P GOLD SLDR CUP / 6 (Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
HR30-6R-6S(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HR30
Package Tray
Connector Type Receptacle, Female Sockets
Number of Positions 6 (Power)
Shell Size - Insert 6
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Polyphenylene Sulfide (PPS)
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Bronze Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Marine, Medical
Base Product Number HR30
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1340080-HR30-6R-6S(71)
Ultra Librarian 3D Model Ultra Librarian HR30-6R-6S(71) CAD Model

Description

The HR30-6R-6S(71) connector is part of the HR30 series of connectors from Hirose Electric Co Ltd.

  • Manufacturer: Hirose Electric Co Ltd
  • Product Name: HR30-6R-6S(71)
  • Series: HR30
  • Positions (Power): 6
  • Connector Type: Circular Connector
  • Connector Style: Receptacle, Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Push-Pull
  • Package: Tray
  • Contact Material: Bronze Alloy
  • Voltage Rating: 100VAC, 140VDC
  • Ingress Protection: IP67/IP68 (Dust Tight and Waterproof)
  • Application: Industrial, Marine, Medical
  • Temperature Range: -25°C ~ 85°C
  • RoHS: Non-Compliant
