Same model may have multiple batches, images only for reference.

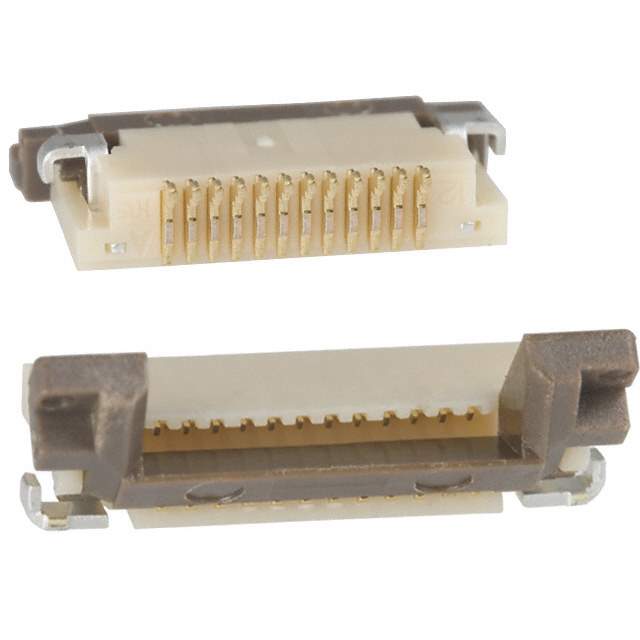

FH12A-12S-0.5SH(55) Real Image
Same model may have multiple batches, images only for reference.

FH12A-12S-0.5SH(55)

Part No FH12A-12S-0.5SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC TOP 12POS 0.50MM R/A
Datasheet
FH12A-12S-0.5SH(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 12 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH12
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number HFK112DKR, 586-0696-4-55, HFK112CT, FH12A-12S-0.5SH(55)-ND, *FH12A-12S-0.5SH(55), FH12A12S05SH55, Q2731185, HFK112TR
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871806-FH12A-12S-0.5SH(55)
Ultra Librarian 3D Model Ultra Librarian FH12A-12S-0.5SH(55) CAD Model

Description

The FH12A-12S-0.5SH(55) by Hirose Electric Co Ltd is a 12-position FFC, FPC connector contact that is part of the FH12 series.

  • Operating Temperature Range: -40°C to 85°C
  • Estimated production lead time: 25 weeks
  • ECCN: EAR99
  • HTSUS code: 8536.69.4051
  • Other part numbers: Q2731185 and HFK112TR
