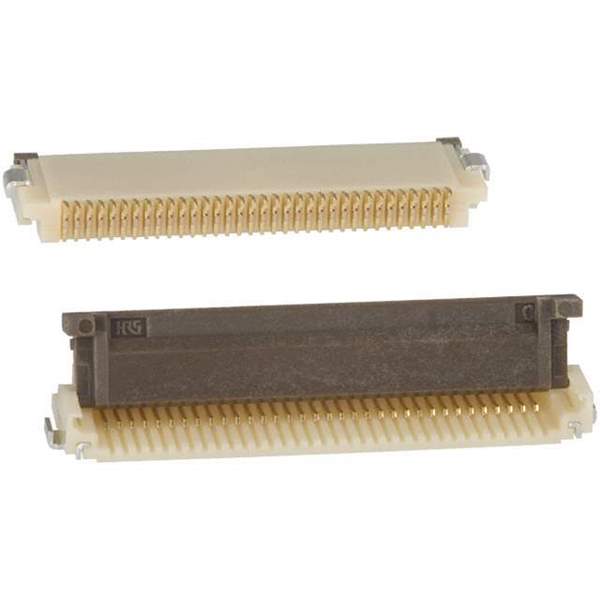

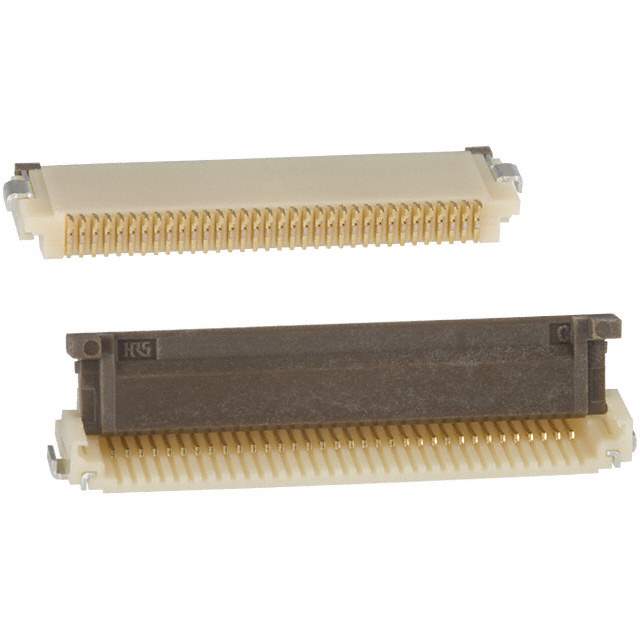

FH12-34S-0.5SH(55) Real Image
Same model may have multiple batches, images only for reference.

FH12-34S-0.5SH(55)

Part No FH12-34S-0.5SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 34POS 0.50MM R/A
Datasheet
FH12-34S-0.5SH(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 34 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH12
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number *FH12-34S-0.5SH(55), HFJ134DKR, 586-0617-8-55, HFJ134TR, FH1234S05SH55, HFJ134CT
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919110-FH12-34S-0.5SH(55)
Ultra Librarian 3D Model Ultra Librarian FH12-34S-0.5SH(55) CAD Model

Description

The Hirose Electric Co Ltd FH12 series FFC, FPC connector contacts is a surface mount, right angle connector with 34 positions and a pitch of 0.50mm.

  • Temperature Range: -40°C to 85°C
  • Series: FH12
  • Family Name: FH12
  • Market Status: High demand and supply balance
  • Estimated Production Lead Time: 25 weeks
  • Package: Reel - TR
  • ECCN: EAR99
  • Category: Connector
  • HTSUS: 8536.69.4051
