Same model may have multiple batches, images only for reference.

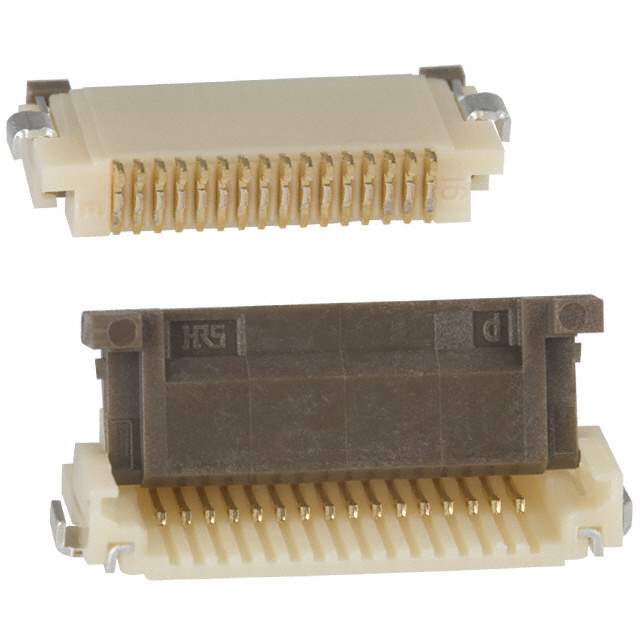

FH12-16S-0.5SH(1)(98) Real Image
Same model may have multiple batches, images only for reference.

FH12-16S-0.5SH(1)(98)

Part No FH12-16S-0.5SH(1)(98)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 16POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 16 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH12
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871780-FH12-16S-0.5SH(1)(98)
Ultra Librarian 3D Model Ultra Librarian FH12-16S-0.5SH(1)(98) CAD Model

Description

The FH12-16S-0.5SH(1)(98) is a 16 position surface mount right angle connector from Hirose Electric Co Ltd.

  • Series: FH12
  • Pitch: 0.020" (0.50mm)
  • Connector/Contact Type: contacts, bottom
  • Application: FFC and FPC applications
  • Operating Temperature Range: -40°C ~ 85°C
  • Packaging: Reel
  • Quantity per Package: 500
  • Production Lead Time: 25 weeks
