Same model may have multiple batches, images only for reference.

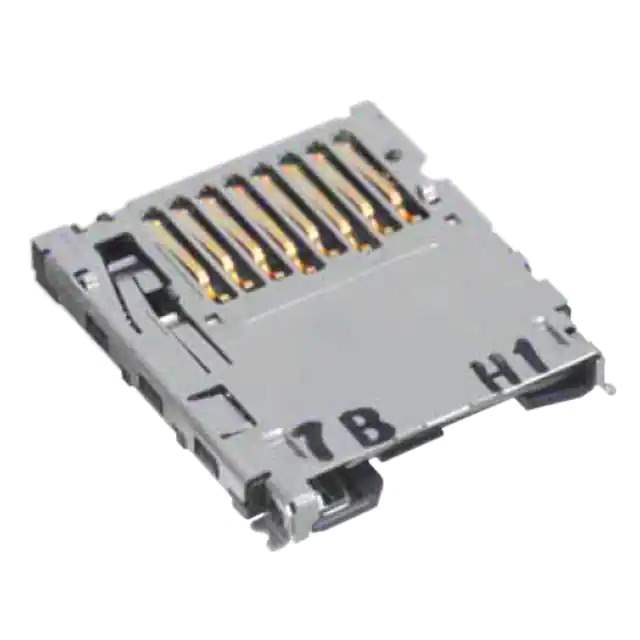

DM3BT-DSF-PEJS Real Image
Same model may have multiple batches, images only for reference.

DM3BT-DSF-PEJS

Part No DM3BT-DSF-PEJS
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD CARD PUSH-PUSH R/A
Datasheet
DM3BT-DSF-PEJS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Hirose Electric Co Ltd
Series DM3
Package Tape & Reel
Product Status Active
Card Type Secure Digital - microSD™
Number of Positions 10 (8 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.072" (1.83mm)
Mounting Feature Reverse - Bottom
Contact Finish Gold
Base Product Number DM3BT
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 585109-DM3BT-DSF-PEJS
Ultra Librarian 3D Model Ultra Librarian DM3BT-DSF-PEJS CAD Model

Description

The 585109-DM3BT-DSF-PEJS is a PC Card socket connector from Hirose Electric Co Ltd.

  • Manufacturer: Hirose Electric Co Ltd
  • Product Name: 585109-DM3BT-DSF-PEJS
  • Series: DM3
  • Positions: 10 (8 + 2)
  • Features: Switch
  • Packaging: Tape & reel
  • Standard Package: 1,200 pieces
  • Card Type: Secure Digital - microSD™
  • Insertion/Removal: Push-in, push-out
  • Height Above Board: 0.072" (1.83mm)
  • Mounting Feature: Reverse - bottom
  • Mounting Type: Surface mount, right-angle
  • MSL Level: 1
  • HTSUS Code: 8536.69.4040
