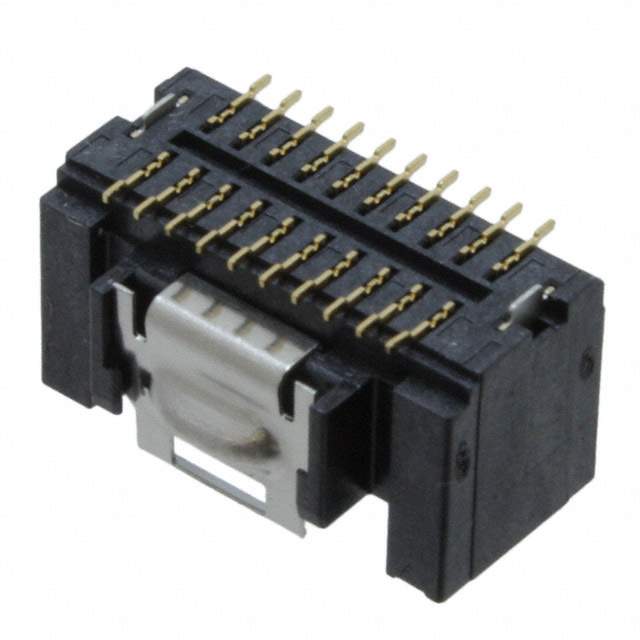

Same model may have multiple batches, images only for reference.

DF50-20DP-1V(52)

Name: DF50-20DP-1V(52)
Brand: Hirose Electric Co Ltd
SKU: 1337272
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF50-20DP-1V(52)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1MM / Connector Header Surface Mount 20 position 0.039" (1.00mm)
Datasheet	DF50-20DP-1V(52) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF50
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.039" (1.00mm)
Number of Positions	20
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Lock
Insulation Height	0.278" (7.06mm)
Contact Finish - Mating	Gold
Contact Material	Brass
Insulation Material	Polyester
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	100V
Mated Stacking Heights	7.35mm
Base Product Number	DF50
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1337272-DF50-20DP-1V(52)
Ultra Librarian 3D Model	Ultra Librarian DF50-20DP-1V(52) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF50 series male header connector is an ideal choice for applications requiring a reliable and efficient connection.

Position Count: 20
Number of Rows: 2
Contact Gender: Male
Contact Type: Blade
Features: Shrouded 4-Wall, Solder Retention
Voltage Rating: 100V
Current Rating: 1A
Contact Material: Brass
Flammability Rating: UL94 V-0
Pitch: 0.039" (1.00mm)
Mounting Type: Surface Mount
Application: Board to Cable/Wire
Packaging: Tape & Reel
Standard Package: 1,000
