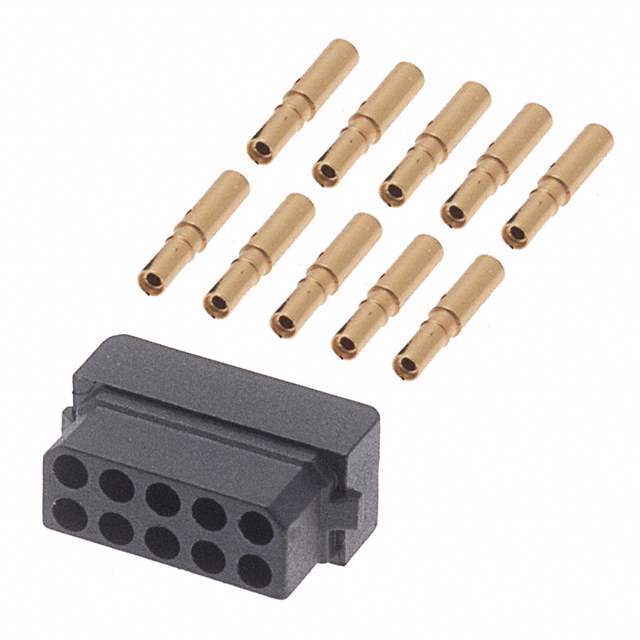

M80-8881005

Part No M80-8881005
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS CRIMP 24-28AWG
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203773-M80-8881005
Manufacturer Harwin Inc.
Category Connectors, Interconnects -Rectangular Connectors- Free Hanging, Panel Mount
Series Datamate L-Tek
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Mounting Type Free Hanging (In-Line)
Contact Finish Thickness Contact Finish Thickness
Ultra Librarian 3D Model Ultra Librarian M80-8881005 CAD Model

Description

A range of 2mm pitch male and female rectangular, fully shrouded unsealed connectors with replaceable contacts for interconnecting board to board, cable to board and cable to cable. The range covers 2 to 96 ways, in various application methods. Female connectors are available for crimp, vertical throughboard and surface mount termination. Male connectors are available for crimp, vertical or horizontal (90°) throughboard and surface-mount termination. Pre-cabled contacts and cable assemblies are also available in various options. The connectors are provided with a range of contact terminations (as shown in Appendix 1) that are gold or tin plated. The contact zone of a gold plated contact is hard acid gold of 98% purity.
