M55-7101242R Harwin Inc.
Same model may have multiple batches, images only for reference.

M55-7101242R

Part No M55-7101242R
Manufacturer Harwin Inc.
Catalog Rectangular Connectors

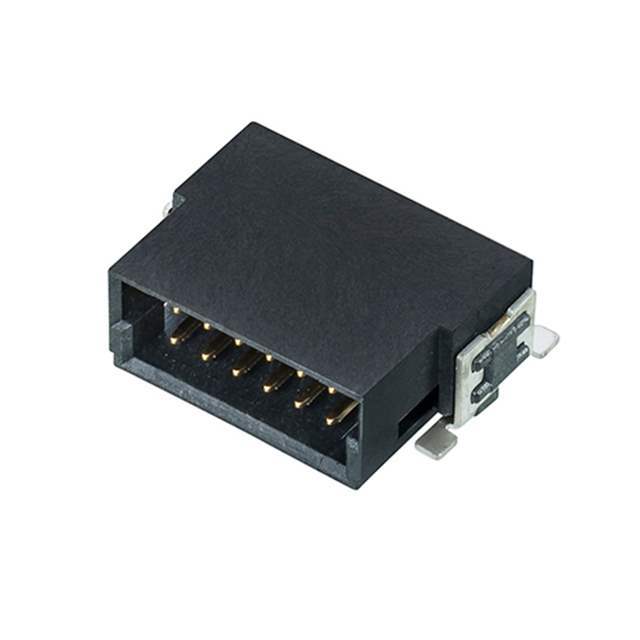

Description CONN HEADER SMD R/A 12POS 1.27MM
Datasheet
M55-7101242R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208026-M55-7101242R
Manufacturer Harwin Inc.
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Series Archer Kontrol
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 12
Row Spacing - Mating 0.050" (1.27mm)
Ultra Librarian 3D Model Ultra Librarian M55-7101242R CAD Model

Description

Kontrol is designed to withstand the demands of industrial applications with a fully flexible connection. The boardto-board mating performs from fully mated to 1.5mm separation, giving a full range of mating heights from 8mm to 20mm parallel board separation. With horizontal PCB connectors and IDC cable connectors, Kontrol can be used for edge-to-edge, motherboard-todaughterboard and cable-to board. Mated connectors can carry a data rate up to 3Gb/s.
