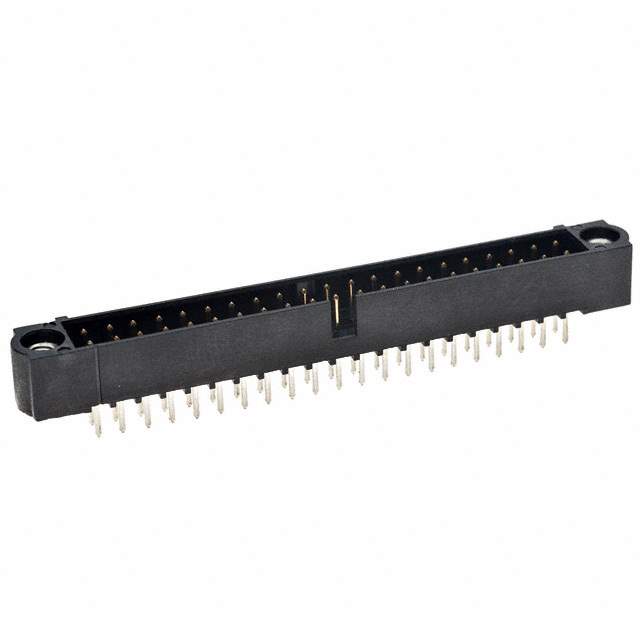

M80-5004242

Name: M80-5004242
Brand: Harwin Inc.
SKU: 1340089
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M80-5004242
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 42POS 2MM / Connector Header Through Hole 42 position 0.079" (2.00mm)
Datasheet	M80-5004242 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	42
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.128" (3.25mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Keying Slot, Mating Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	120V
Mated Stacking Heights	7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-500
Standard Package	5
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340089-M80-5004242
Ultra Librarian 3D Model	Ultra Librarian M80-5004242 CAD Model

Description

The Harwin Inc. Datamate J-Tek series male pin header connector is a high-quality component designed for use in board-to-board or cable applications.

Number of Positions: 42
Pitch: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS) Glass Filled
Color: Black
Packaging: Square - 40mm L x 40mm H
Mounting Type: Through Hole
Mating Style: Shrouded - 4 Wall
Voltage Rating: 120V
Current Rating: 2.2A
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Insulation Height: 0.220" (5.60mm)
REACH: Unaffected
