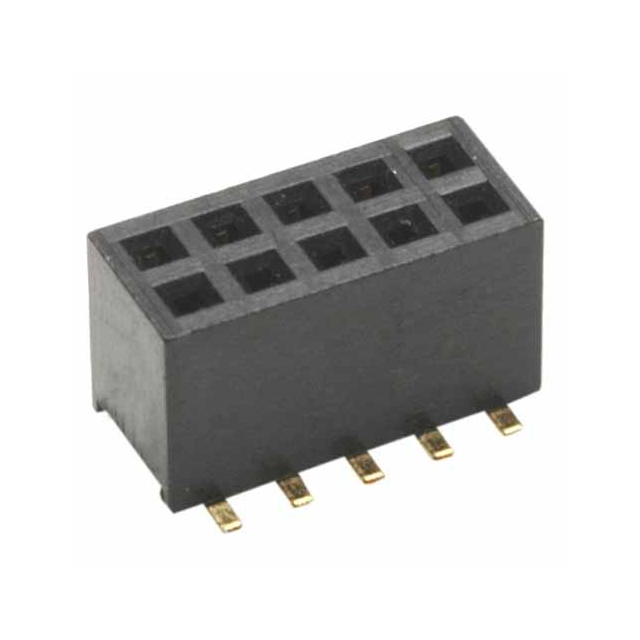

M50-3100845

Name: M50-3100845
Brand: Harwin Inc.
SKU: 1339592
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M50-3100845
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 16POS 0.05 GOLD SMD / 16 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet	M50-3100845 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	Archer M50
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.181" (4.60mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	5.5mm, 6.18mm
Current Rating (Amps)	1A
Voltage Rating	250V
Applications	General Purpose, Medical, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	M50-310
Standard Package	57
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339592-M50-3100845
Ultra Librarian 3D Model	Ultra Librarian M50-3100845 CAD Model

Description

The Archer M50 1339592-M50-3100845 is a rectangular connector manufactured by Harwin Inc. It is part of the Archer M50 series.

Connector Type: Receptacle
Supply and Demand: Balanced
Number of Positions: 16
Loaded Positions: All
Mounting Type: Surface Mount
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Voltage Rating: 250V
