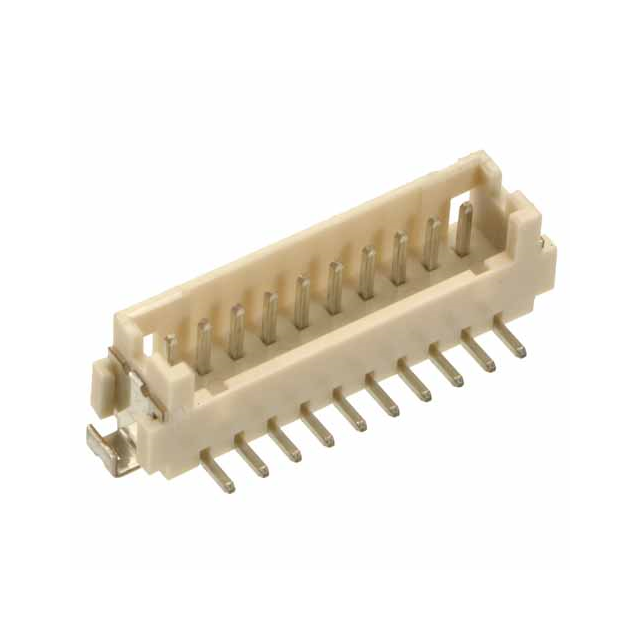

M30-6000646R Real Image
Same model may have multiple batches, images only for reference.

M30-6000646R

Part No M30-6000646R
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 6POS 1.25MM / Connector Header Surface Mount 6 position 0.049" (1.25mm)
Datasheet
M30-6000646R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Harwin Inc.
Series M30
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T) , Nylon 6T
Features Board Guide, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A per Contact
Voltage Rating 150V
Base Product Number M30-600
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337995-M30-6000646R
Ultra Librarian 3D Model Ultra Librarian M30-6000646R CAD Model

Description

The Harwin Inc. Connector with Win Source Part Number 1337995-M30-6000646R is an electronic component used in rectangular connectors. Connector from Harwin Inc..

  • Series: M30
  • Number of Positions: 6
  • Features: Board Guide, Solder Retention
  • Connector Type: Header
  • Contact Type: Male Pin
  • Number of Positions Loaded: All
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Packaging: Tape & Reel (TR)
  • Standard Package: 1,000
  • Contact Material: Brass
  • Voltage Rating: 150V
  • Insulation Material: Polyamide (PA6T) , Nylon 6T
  • Style: Board to Cable/Wire
  • Pitch - Mating: 0.049" (1.25mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 80.0µin (2.03µm)
  • Contact Finish - Post: Tin
  • Insulation Color: Natural
  • Mounting Type: Surface Mount
  • Shrouding: Shrouded - 4 Wall
  • Insulation Height: 0.189" (4.80mm)
  • Contact Shape: Square
  • Operating Temperature: -25°C ~ 85°C
  • MSL: 1 (Unlimited)
  • Current Rating (Amps): 1A per contact
  • REACH: REACH Unaffected
  • HTSUS: 8536.69.4040
