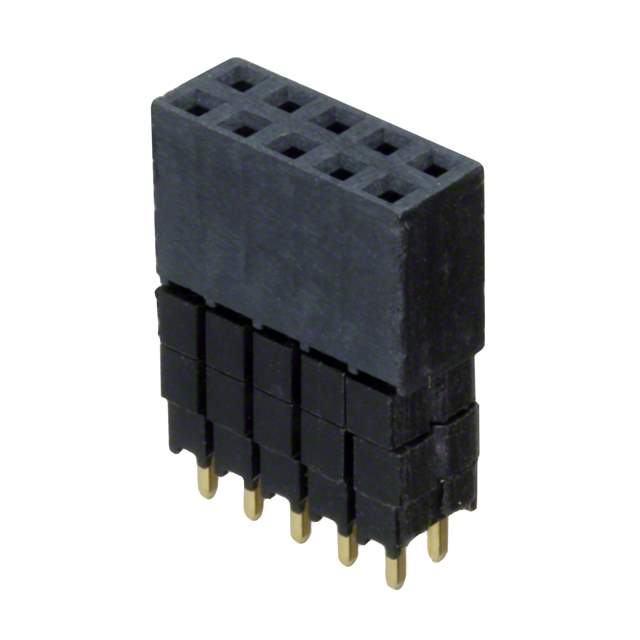

Same model may have multiple batches, images only for reference.

ESQ-105-33-G-D

Name: ESQ-105-33-G-D
Brand: Samtec Inc.
SKU: 1381392
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ESQ-105-33-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SOCKET 10POS 0.1 GOLD PCB / 10 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	ESQ-105-33-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	ESQ
Package	Bulk
Connector Type	Elevated Socket
Contact Type	Forked
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.635" (16.13mm)
Contact Length - Post	0.090" (2.29mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	5.7A per Contact
Voltage Rating	550VAC
Applications	-
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	ESQ-105
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Standard Package	1 pcs
Win Source Part Number	1381392-ESQ-105-33-G-D
Ultra Librarian 3D Model	Ultra Librarian ESQ-105-33-G-D CAD Model

Description

The 1381392-ESQ-105-33-G-D is a rectangular connector with elevated sockets.

Number of Positions: 10
Application: Board to Board
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm)
Contact Material: Phosphor Bronze
Contact Finish: Gold
Voltage Rating: 550VAC
Current Rating: 5.7A per contact
Operating Temperature: -55°C~125°C
Series: ESQ
Manufacturer: Samtec Inc.
REACH Status: Not affected
ECCN: EAR99
