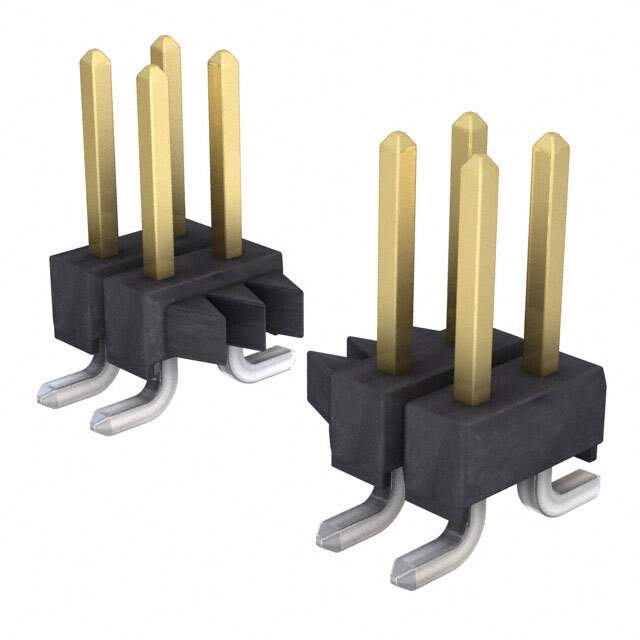

M20-8750542

Name: M20-8750542
Brand: Harwin Inc.
SKU: 1345715
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M20-8750542
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2.54MM / Connector Header Surface Mount 10 position 0.100" (2.54mm)
Datasheet	M20-8750542 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	M20
Package	Tube
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.228" (5.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA6T) , Nylon 6T, Glass Filled
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	M20-875
Standard Package	48
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1345715-M20-8750542
Ultra Librarian 3D Model	Ultra Librarian M20-8750542 CAD Model

Alternative Products

Description

The Harwin Inc. M20 series header male pin connector is a reliable and versatile connector for use in a variety of applications.

Positions: 10
Features: Board Guide
Contact Material: Brass
Termination: Solder
Shrouded: Unshrouded
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Insulation Material: Polyamide (PA6T) and Nylon 6T, Glass-Filled
Temperature Range: -40°C to 105°C
Current Rating: 3A per Contact
Packaging: Tube
Flammability Rating: UL94 V-0
RoHS: Compliant
REACH: Unaffected
