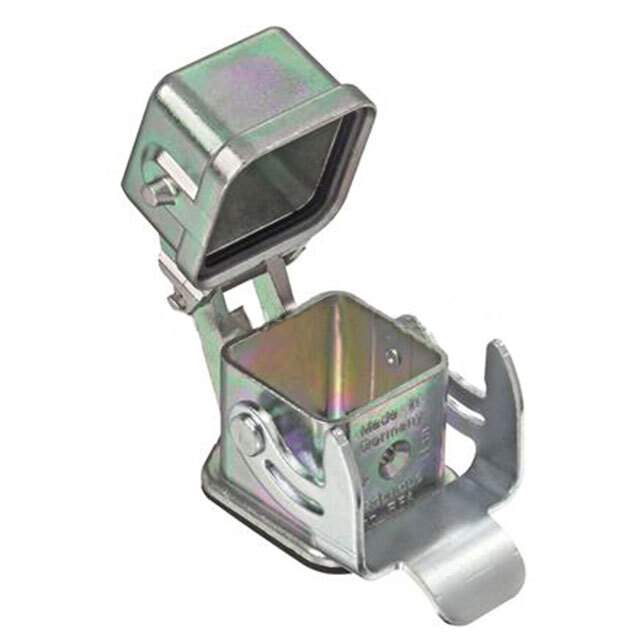

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® EMC
Package Bulk
Connector Type Base
Style Bottom Entry
Size 3A
Lock Location Locking Clip (1) on Base Bottom
Size / Dimension 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
Features Cover, EMC Resistant
Ingress Protection IP44
Housing Material Zinc, Die Cast
Housing Finish Zinc
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 09260030
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1349731-09620030306
Ultra Librarian 3D Model Ultra Librarian 09620030306 CAD Model

Description

The 1349731-09620030306 is a Han® EMC series connector base that comes with a cover and is EMC resistant.

  • Series: Han® EMC
  • Entry Style: Bottom
  • Size: 3A
  • Thread Size: Not Mentioned
  • Ingress Protection: IP44
  • Material: Zinc, Die-Cast
  • Size / Dimension: 1.102 inches L x 1.575 inches W x 0.906 inches H (28.00mm x 40.00mm x 23.00mm)
  • Packaging: Box
  • Standard Package: 10
  • Operating Temperature: -40°C ~ 125°C
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8538.90.8180
  • Base Product Number: 09260030
  • Locking: Locking Clip (1) on the Base Bottom
