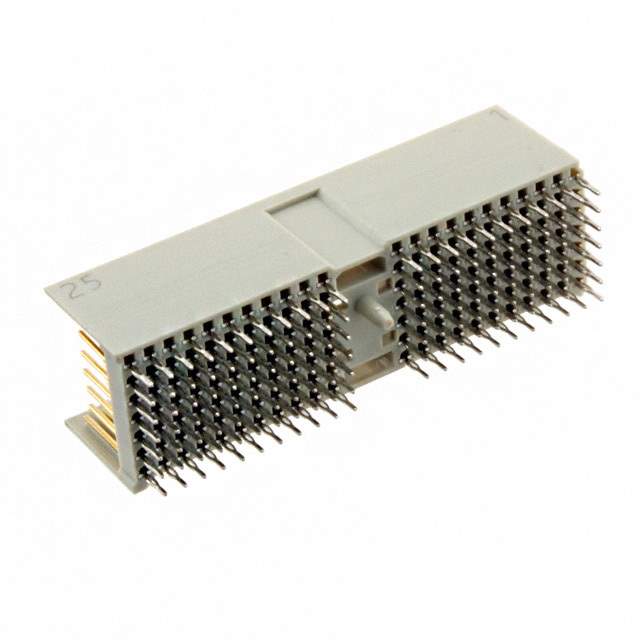

17011542204 Real Image1 17011542204 Real Image2
17011542204 Real Image1 17011542204 Real Image2
Same model may have multiple batches, images only for reference.

17011542204

Part No 17011542204
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN HEADER 154POS 2MM PRESS-FIT / 154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Datasheet
17011542204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Mfr HARTING
Series har-bus® HM
Package Tube
Connector Type Header, Male Pins
Connector Style A 22
Number of Positions 154 (110 + 44 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 2
Mounting Type Through Hole
Termination Press-Fit
Connector Usage CompactPCI Hot Swap P1
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness -
Current Rating (Amps) 1 A
Voltage Rating -
Temperature Range - Operating -55°C ~ 125°C
Features Board Guide
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 10 pcs
Win Source Part Number 1380546-17011542204
Ultra Librarian 3D Model Ultra Librarian 17011542204 CAD Model

Description

The har-bus® HM series from HARTING is a high-quality hard metric backplane connector.

  • Series: har-bus® HM
  • Number of Positions: 154
  • Number of Positions Loaded: 110 + 44 Ground
  • Pitch: 0.079" (2.00mm)
  • Features: Board Guide
  • Connector Type: Header, Male Pins
  • Termination: Press-Fit
  • Contact Finish: Gold or Gold-Palladium
  • Usage: CompactPCI Hot Swap P1
  • Voltage Rating: -
  • Operating Temperature: -55°C ~ 125°C
  • ECCN: EAR99
  • Current Rating: 1A
  • Standard Package: 10 pcs
  • Packaging: Tube
