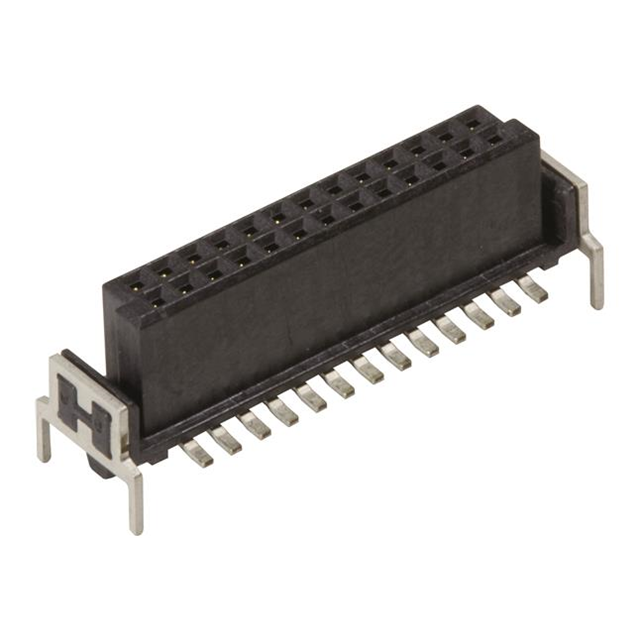

15211002401333 Real Image
Same model may have multiple batches, images only for reference.

15211002401333

Part No 15211002401333
Manufacturer HARTING
Catalog Rectangular Connectors
Description HAR-FLEX STRAIGHT FEMALE 6.25MM,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr HARTING
Series har-flex®
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 100
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.25mm
Features Board Guide, Pick and Place
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Copper Alloy
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905357-15211002401333
Ultra Librarian 3D Model Ultra Librarian 15211002401333 CAD Model

Description

The 905357-15211002401333 is a har-flex® receptacle connector with 100 positions.

  • Connector Series: har-flex®
  • Positions: 100
  • Features: Board guide and pick and place capabilities
  • Pitch: 0.050" (1.27mm)
  • Connection Type: Board-to-board
  • Contact Type: Female socket
  • Contact Material: Copper alloy
  • Insulation Material: Liquid crystal polymer
  • Mated Stacking Height: 6.25mm
  • Temperature Range: -55°C to 125°C
