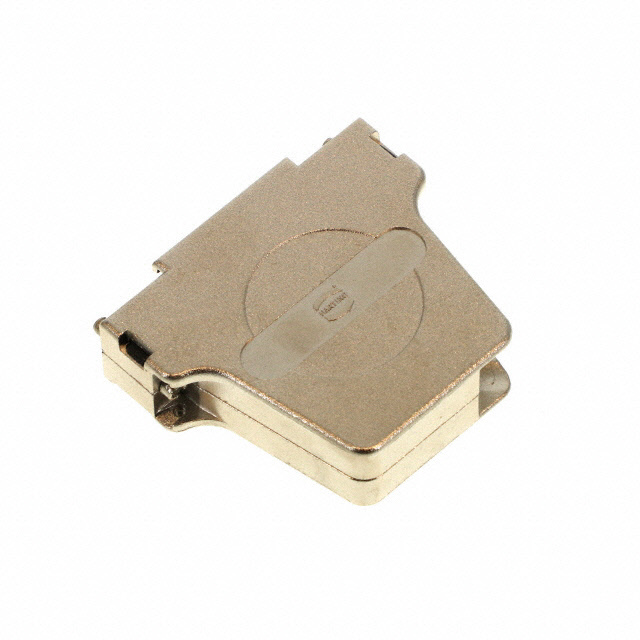

09670150336 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

09670150336

Part No 09670150336
Manufacturer HARTING
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description D SUB SIDE ENTRY METAL HOOD 15 P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Accessory Type Two Piece Backshell
Number of Positions 15
Compatible Shell Size A
Compatible D-Sub Size 15pos and HD26pos
Cable Type Round
Cable Exit 45°
Shielding Unshielded
Primary Material Metal
Material Metal
Hardware Assembly Hardware, Grommets
Features Mating Screws M3
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1621596-09670150336
Ultra Librarian 3D Model Ultra Librarian 09670150336 CAD Model
