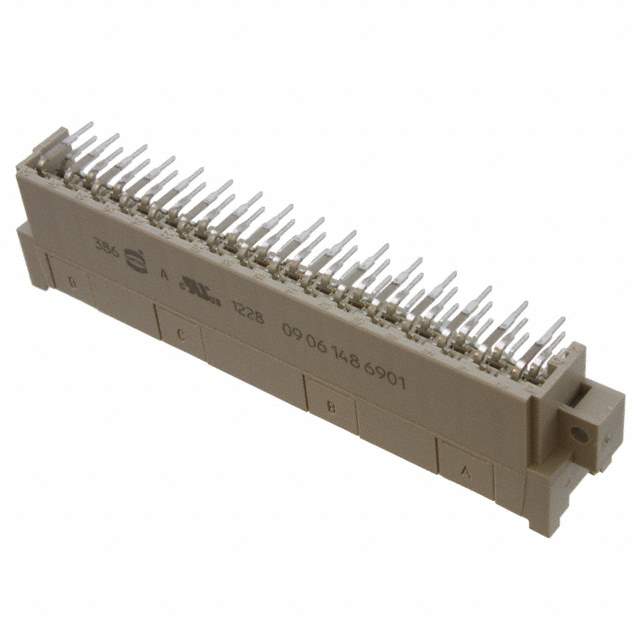

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Header, Male Pins
Number of Positions 48 (Power)
Number of Positions Loaded All
Pitch 0.200" (5.08mm)
Number of Rows 3
Style F
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904778-09061486901
Ultra Librarian 3D Model Ultra Librarian 09061486901 CAD Model

Description

The 904778-09061486901 is a DIN 41612 backplane connector from HARTING.

  • Positions: 48
  • Connector Type: Header
  • Gender: Male
  • Contact Type: Pin
  • Pitch: 0.200" (5.08mm)
  • Mounting Type: Through Hole, Right Angle
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Contact Finish: Not Specified
  • Termination: Solder
  • Positions Loaded: All
  • Rows: 3
  • Current Rating: Not Specified
  • Series: F
  • Level/Class: 2
  • Package Quantity: 20
  • Operating Temperature: Not Specified
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL: 1 (Unlimited Floor Life)
