Products specifications

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Mfr HARTING
Series DIN 41612
Package Tube
Connector Type Header, Male Pins
Number of Positions 160 (96 + 64 Ground)
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 5
Style -
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Features -
Contact Finish -
Contact Finish Thickness -
Temperature Range - Operating -
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Material - Insulation -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 5 pcs
Win Source Part Number 1380359-02011602101
Ultra Librarian 3D Model Ultra Librarian 02011602101 CAD Model

Description

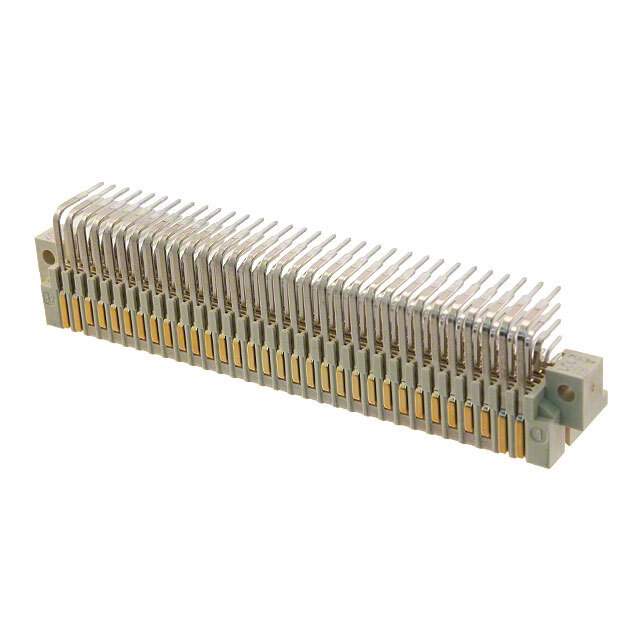

The HARTING 1197496 is a DIN 41612 connector header with male pins. It belongs to the DIN 41612 series and features 160 positions, including 96 signal pins and 64 ground pins.

  • Series: DIN 41612
  • Positions: 160 (96 Signal, 64 Ground)
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Through Hole, Right Angle
  • Applications: Various
  • Material: High-Quality
  • Flammability Rating: UL94 V-0
  • Packaging: Tube
  • Status: Active
  • Connector Type: Header, Male Pins
