144D Hammond Manufacturing – Price, Stock & Datasheet

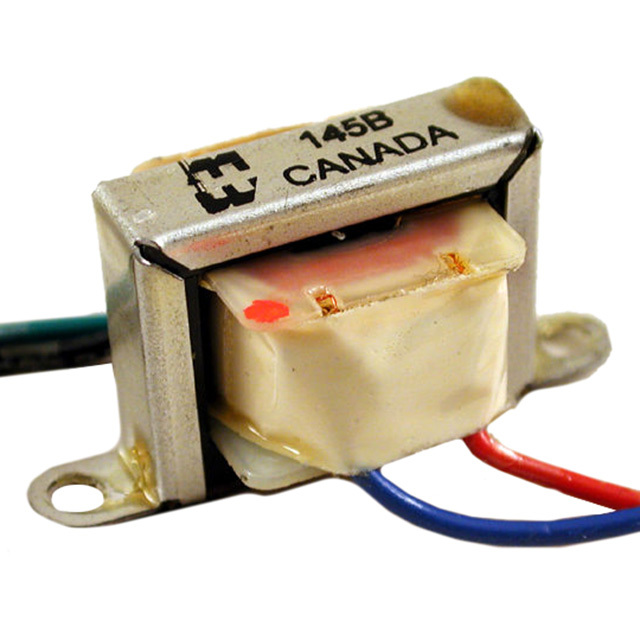

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Impedance - Primary (Ohms) 300CT
Impedance - Secondary (Ohms) 3.2
DC Resistance (DCR) - Primary 15Ohm
DC Resistance (DCR) - Secondary 330mOhm
Transformer Type Economical Open Type
Frequency Range 150Hz ~ 15kHz
Frequency Response ±1dB
Power Level 150mW
Mounting Type Chassis Mount
Size / Dimension 1.000" L x 0.690" W (25.40mm x 17.53mm)
Height - Seated (Max) 0.690" (17.53mm)
Termination Style Wire Leads
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1511045-144D
Ultra Librarian 3D Model Ultra Librarian 144D CAD Model
