Same model may have multiple batches, images only for reference.

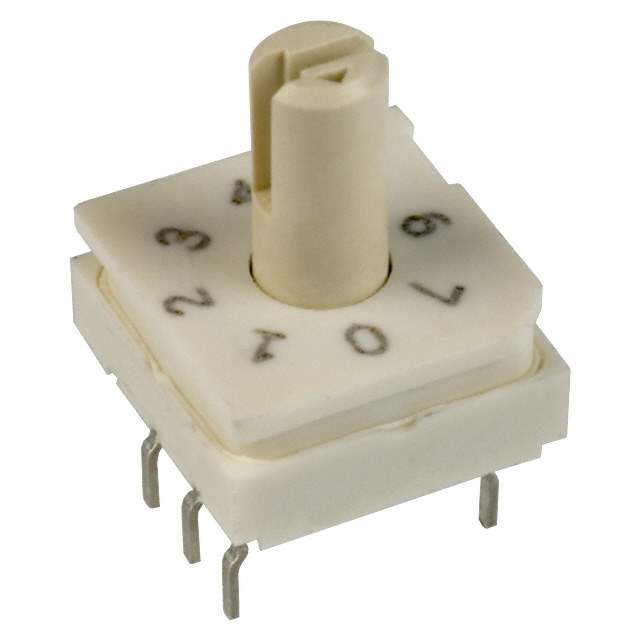

94HBB08T Real Image
Same model may have multiple batches, images only for reference.

94HBB08T

Part No 94HBB08T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SW ROTARY DIP OCTAL 100MA 50V / Dip Switch Octal 8 Position Through Hole Rotary with Shaft Actuator 100mA 50VDC
Datasheet
94HBB08T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Grayhill Inc.
Series 94H
Package Tube
Circuit Octal
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 50VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.495" (12.57mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm) , Full
Washable Yes
Features Sealed
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.390" (9.91mm)
Mechanical Life 10,000 Cycles
Base Product Number 94HBB08
Standard Package 27
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1340072-94HBB08T
Ultra Librarian 3D Model Ultra Librarian 94HBB08T CAD Model

Description

The Grayhill Inc. 94H series DIP switch is a sealed switch with 8 positions and a pitch of 0.100" (2.54mm).

  • Manufacturer: Grayhill Inc.
  • Product Name: 94H series
  • Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Circuit: Octal
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 50VDC
  • Current Rating: 100mA
  • Actuator Type: Rotary with Shaft
  • Actuator Level: Raised
  • Washable: Yes
  • Mechanical Life: 10,000 cycles
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 85°C
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8536.50.9065
